    PANDAforest Tongue & Groove Plywood
    PANDAforest Tongue & Groove Plywood

PANDAforest Tongue & Groove Plywood

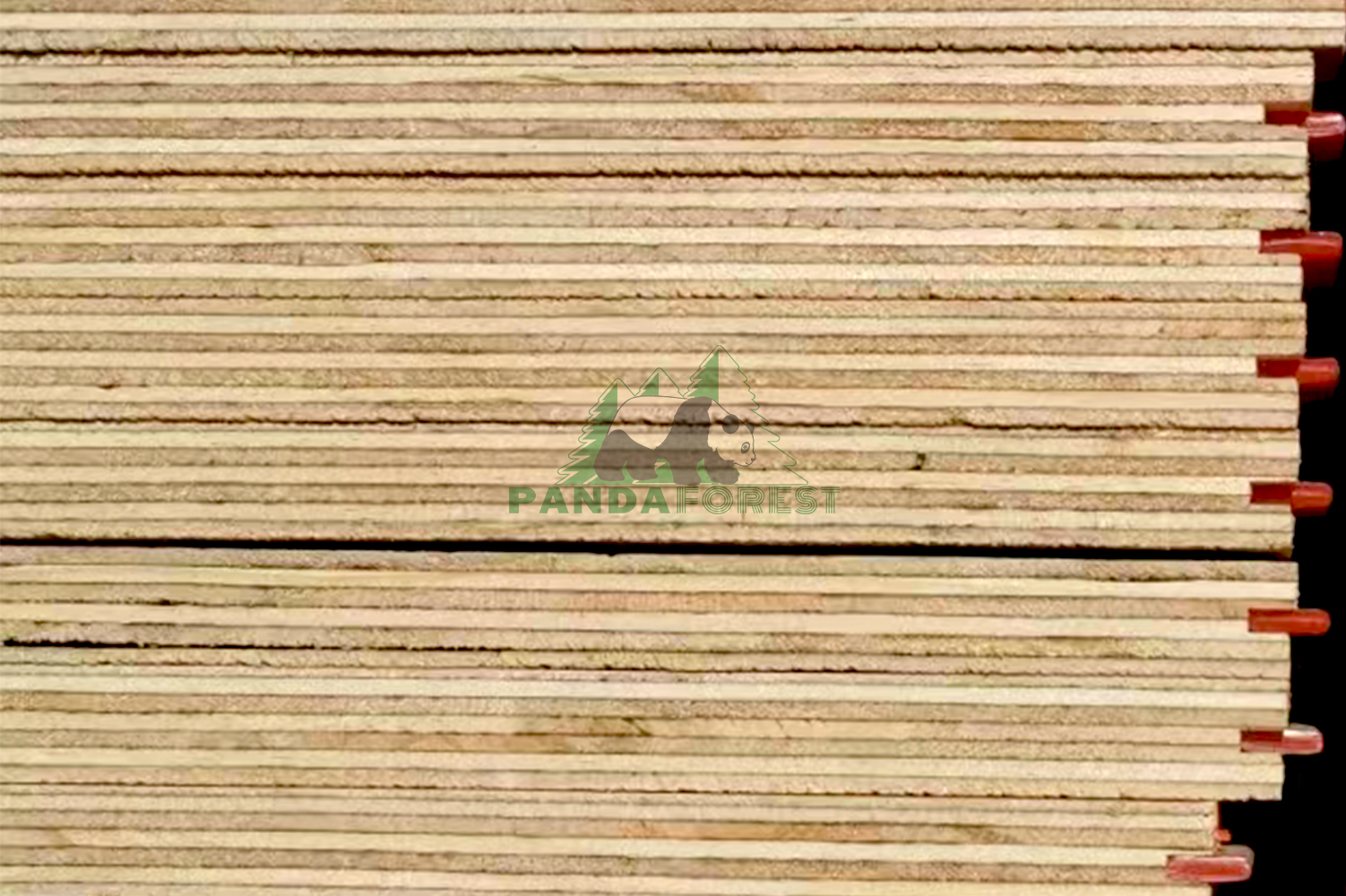

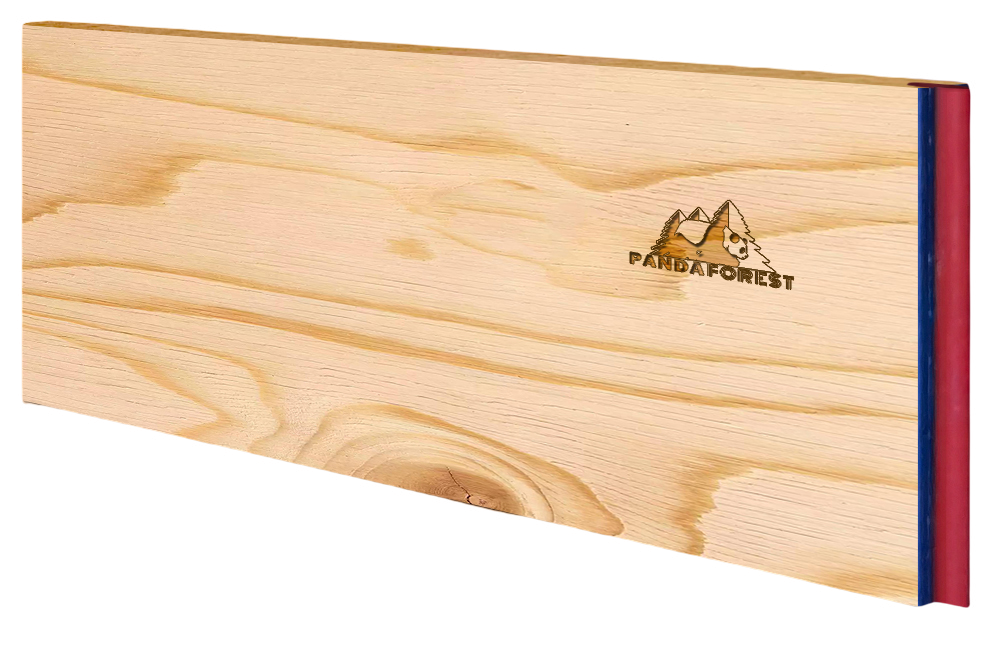

PANDAforest Tongue and Groove Plywood is a strong, durable and stable structural and non-structural flooring base purposes plywood board, the long edges has machine grooved edges fitted with colour PVC tongues, joined by utilising the tongue and groove method to ensure an easy and tight fit for adjoining plywood panels.

  • PANDAforest Tongue and Groove Plywood has well sanded BC or CD grade face and back panel to choose, offers superior strength and stiffness, dimensional stability, superior impact resistance and easy work-ability whilst remaining cost effective.
  • Tongue & Groove Plywood can be H2, H2S, H3 treated for external or wet area uses, available in a range of thicknesses suitable for use in structural and non-structural flooring.
Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

FEATURES & BENEFITS

◎ Tongue and groove profile for easy installation
◎ Faster and easier laying, saving time and cost
◎ High cost performance and low price.
◎ Preferred because of its warmth and natural markings.
◎ Good sound insulation, high stiffness and ability to withstand significant snow and wind loads allow to use.
◎ We have the flexibility to customize specific properties, lengths, widths.
◎ Edge seal helps prevent moisture intrusion and water-related issues that can lead to call backs.
◎ Suitable for uses not permanently exposed to the weather (exposure 1 panel).
◎ Environmentally safe construction material.
◎ High strength and stiffness
◎ Strong and uniform consistency throughout.
◎ Support FSC and PEFC legally harvested resources. and is E0 emissions compliant.
◎ Support OEM/ ODM service.

END USE

◎ Subfloor – can be used both as continuous flooring and load bearing joists.
◎ Single floor – in light structures plywood panel can be used directly as flooring.
◎ Wall Sheathing – interior and exterior walls. plywood panels can be used with all types of interior and exterior finishing materials
◎ Roof sheathing- plywood panels as an underlayment for shingles, concrete and metal tiling, slating and other roofing materials.
◎ Furniture –frames of upholstered furniture, chairs, cabinet furniture, home built-in furniture (coat closets, shelving units, wall wardrobes)
◎ I-joists – supporting floor and wall structures in timber houses.
◎ Stiff basis – for thermal panels
◎ Formwork Plywood – Overlayed OSB panels can be used repeatedly as a concrete formwork.
◎ Plank – Stairs, landings, scaffoldings
◎ Fence – temporary construction site fencing.
◎ Partition wall – partition walls for ships and railcars
◎ Structures for auto vehicles, trailer floorings and truck bodies
◎ Packing – Shipping crates and pallets packing materis.
◎ Deck – shelving units, exhibition stands, furniture shelves, shop counters, table tops, bill boards.
◎ DIY

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

SPECIFICATIONS

Type Size Layer up Weight                     (kg/sheet) Core
Materials		 Packing
Unit
(sheets)
T&G 1220x2440x12mm cross-oriented 22.0  Pine / Hardwood 65 or 75
T&G 1220x2440x15mm cross-oriented 27.5  Pine / Hardwood 45 or 60
T&G 1220x2440x17mm cross-oriented 31.0  Pine / Hardwood 43 or 50
T&G 1220x2440x18mm cross-oriented 33.0  Pine / Hardwood 43 or 50
T&G 1220x2440x19mm cross-oriented 35.0  Pine / Hardwood 38 or45
T&G 1220x2440x21mm cross-oriented 38.5  Pine / Hardwood 35 or 40
T&G 1220x2440x25mm cross-oriented 46.0  Pine / Hardwood 31 or 37
T&G 1220x2440x28mm cross-oriented 51.5  Pine / Hardwood 27 or 32

Apart from the regular standard dimensions of 1220mm x 2440mm, also special thickness lengths are available (thickness form 6mm-28mm, max lengrh 6000).
Special dimensions available by request – there may be requirements for minimum quantity per special dimension.

FORMALDEHYDE EMISSION：E0  ≤0.03
Layer up：Cross-oriented
Moisture Content：8% – 15% (at time of despatch)
Dimensional Tolerances：±0.3mm
Straightness：±1.5mm
Density：620 kg/m³ (approximately)
Adhesive：E0
Joint Group：For nails, bolts and screws
Finish：sanding / T&G / paint edges.
Branding：Each pallet of PANDAFOREST T&G plywood is branded as least once with the product name for identification and evidence of compliance with manufacturing control standards
Storage：Store on level bearers at maximum 1800mm centres well clear of the ground, and cover to keep dry but allow ventilation
Source：Plantation timber

OEM Service

PANDAforest Tongue & Groove Plywood using the latest resin and continuous press technology, we have the flexibility to customize specific properties, lengths, widths, thicknesses, and surface characteristics.

China Forest Products Supply manufactures Tongue & Groove Plywood products serving a range of industrial purposes and requirements. Whatever the need, our industrial team applies industry-leading technology to manufacture Plywood panels to exacting specifications.

We can provide OEM orders according to your requirements and work with you to build your own Tongue & Groove Plywood produts brand. Please contact our OEM Service Team.
