Efficiency and reliability of our H20 Beam range, crafted to meet the diverse needs of modern construction. Our H20 Formwork Beams and H20 Timber Beams are engineered for strength, durability, and adaptability, ensuring they fit seamlessly into various construction frameworks. Ideal for supporting formwork structures, these beams provide a balance of lightweight design and robust performance, making them a preferred choice among professionals. With our H20 Beams, enhance the safety and speed of your construction projects.
Entirely made of massive wood in a totally mechanised way, our beam is handy, strong and versatile. It can be used both as primary beam, both as secondary beam in the realisation of concrete roofs, both as support in wallmaking shuttering systems. In combination with our shuttering film faced plywood, the beam constitutes a complete shuttering system finding its main usage in the realisation of any type of concrete roof.

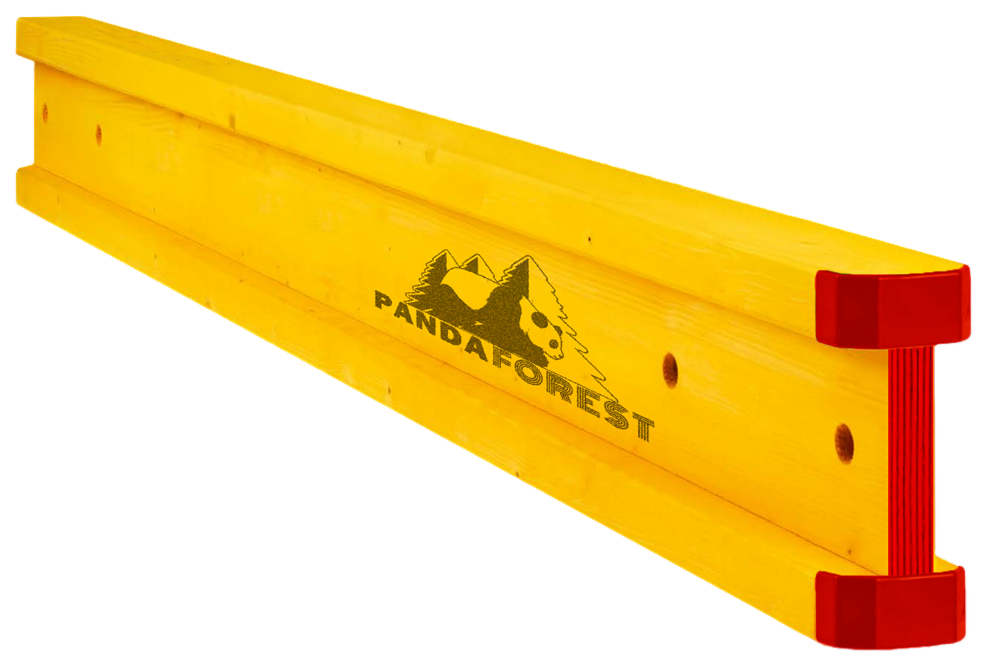

Engineered and designed to provide a safe and reliable structural beams,PANDAforest H20 beams provide high form stability at a reduced weight.
Beam height | 200 mm | ± 2 mm |
External height | 40 mm | ± 0,6 mm |
External width | 80mm | + 0,8 mm/-1,2 mm |
Core thickness | 28 mm | ± 1 mm |

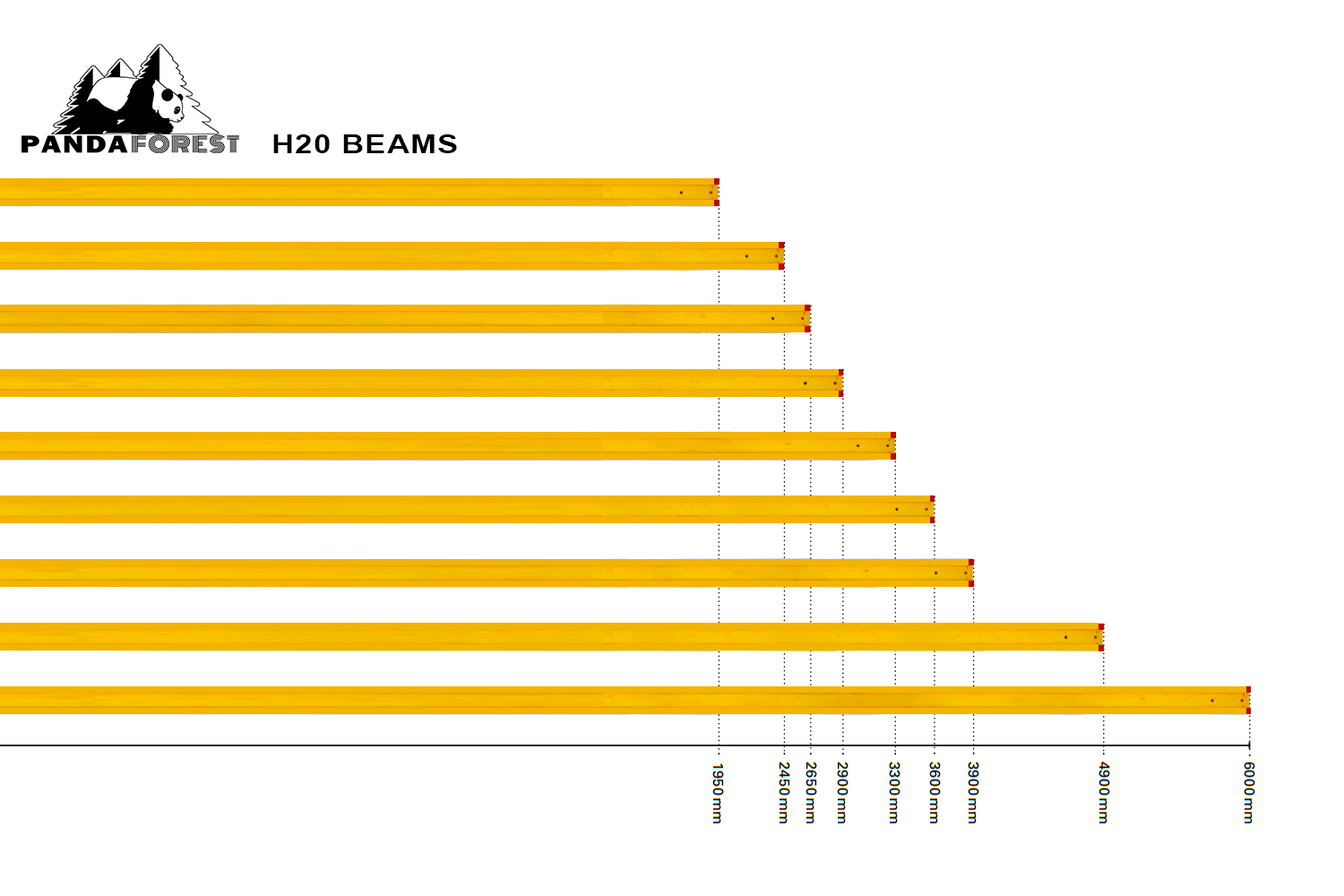

Length Availability 1.95m, 2.45m, 2.65m, 2.9m, 3.3m, 3.6, 3.9m, 4.9m, 6m
Special dimensions available by request – there may be requirements for minimum quantity per special dimension. |

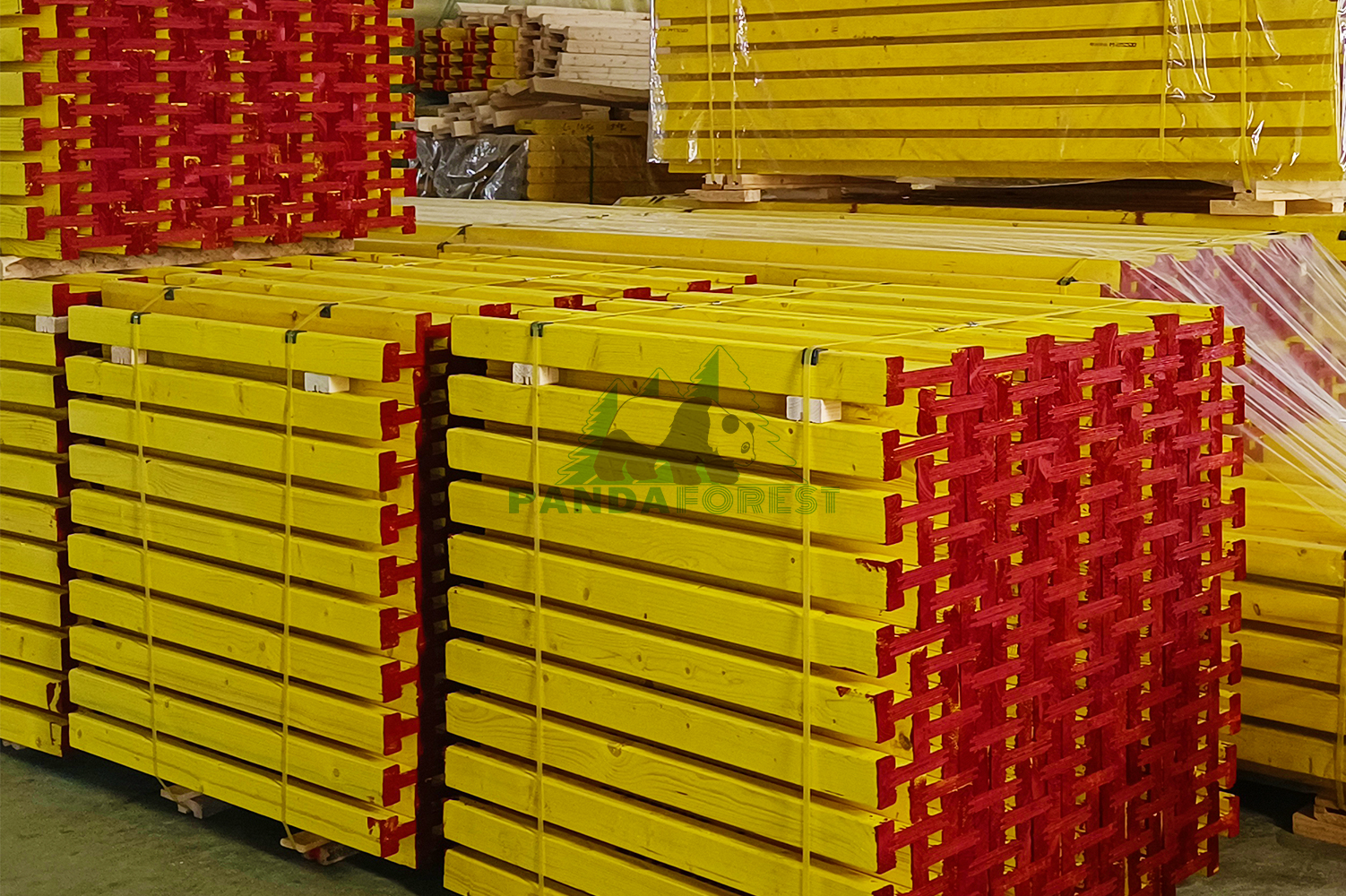

SAFETY ON THE BUILDING SITE:
As a result of the highest quality, careful processing and advanced construction technology, the PANDAforest H20 beams has a significantly longer service life than conventional products.
Protective cap system:
Both ends has a solid plastic cap prevents premature chipping on the chord ends, and increases the service life of the shuttering beam.
Centre webs:
The centre webs made of SENSO structural LVL with strong mechanical properties is ideally suited for load-bearing applications in the outdoor area.
◎ Full size customizable.
◎ Provide OEM Service.
◎ Each length easily identified by the colour coded end section.
◎ Lightweight and versatile. Chamfered edges for comfortable handling.
◎ Faster to install than traditional alternatives.
◎ Strong and re-usable.
◎ Engineered straightness and consistent performance.
◎ Sourced from environmentally sustainable plantation timber,
◎ PANDAFOREST H20 Beams has full Chain of Custody aligned with the FSC and PEFC.
Supports can be placed between beams at any point and can be used in any kind of formwork.
◎ Ceiling formworks
◎ Wall formworks
◎ Bridge formworks
◎ Tunnel formworks
◎ Special formworks
◎ Scaffolding
◎ Working platforms
Floor thickness (cm) | Total load (kN/m2) | Distance between crossbeams (m) | Selected distance between the main beams (m) | |||||||||||
0,50 | 0,625 | 0,667 | 0,75 | 1,00 | 1,25 | 1,50 | 1,75 | 2,00 | 2,25 | 2,50 | 3,00 | 3,50 | ||
10 | 4,38 | 3,70 | 3,43 | 3,35 | 3,22 | 2,93 | 2,72 | 2,50 | 2,31 | 2,16 | 2,04 | 1,93 | 1,70 | 1,45 |
12 | 4,91 | 3,50 | 3,24 | 3,17 | 3,05 | 2,77 | 2,57 | 2,36 | 2,19 | 2,05 | 1,92 | 1,82 | 1,52 | 1,30 |
14 | 5,43 | 3,32 | 3,09 | 3,02 | 2,91 | 2,64 | 2,45 | 2,24 | 2,08 | 1,94 | 1,82 | 1,64 | 1,37 | 1,18 |
16 | 5,95 | 3,19 | 2,96 | 2,90 | 2,79 | 2,54 | 2,35 | 2,14 | 1,98 | 1,85 | 1,66 | 1,50 | 1,25 | 1,07 |
18 | 6,48 | 3,07 | 2,85 | 2,79 | 2,69 | 2,44 | 2,25 | 2,06 | 1,90 | 1,72 | 1,53 | 1,38 | 1,15 | 0,99 |
20 | 7,00 | 2,97 | 2,76 | 2,70 | 2,60 | 2,36 | 2,17 | 1,97 | 1,82 | 1,59 | 1,42 | 1,28 | 1,07 | 0,91 |
22 | 7,53 | 2,88 | 2,68 | 2,62 | 2,52 | 2,29 | 2,09 | 1,90 | 1,69 | 1,48 | 1,32 | 1,19 | 0,99 | 0,85 |
24 | 8,05 | 2,81 | 2,61 | 2,55 | 2,45 | 2,23 | 2,02 | 1,84 | 1,58 | 1,39 | 1,23 | 1,11 | 0,93 | 0,80 |
26 | 8,57 | 2,74 | 2,54 | 2,49 | 2,39 | 2,18 | 1,95 | 1,73 | 1,49 | 1,30 | 1,16 | 1,04 | 0,87 | 0,75 |
28 | 9,10 | 2,67 | 2,48 | 2,43 | 2,34 | 2,12 | 1,89 | 1,63 | 1,40 | 1,23 | 1,09 | 0,98 | 0,82 | 0,71 |
30 | 9,68 | 2,61 | 2,43 | 2,38 | 2,29 | 2,06 | 1,83 | 1,54 | 1,32 | 1,15 | 1,03 | 0,93 | 0,77 | 0,65 |
35 | 11,25 | 2,49 | 2,31 | 2,26 | 2,18 | 1,90 | 1,59 | 1,32 | 1,14 | 0,99 | 0,89 | 0,80 | 0,66 | 0,56 |
40 | 12,83 | 2,38 | 2,21 | 2,17 | 2,07 | 1,74 | 1,39 | 1,16 | 1,00 | 0,87 | 0,78 | 0,70 | 0,58 | 0,49 |
45 | 14,40 | 2,29 | 2,13 | 2,07 | 1,94 | 1,55 | 1,24 | 1,04 | 0,89 | 0,78 | 0,69 | 0,62 | 0,51 | 0,44 |
50 | 15,97 | 2,22 | 2,03 | 1,96 | 1,84 | 1,40 | 1,12 | 0,94 | 0,80 | 0,70 | 0,62 | 0,56 | 0,46 | 0,40 |
55 | 17,54 | 2,15 | 1,93 | 1,87 | 1,69 | 1,27 | 1,02 | 0,85 | 0,73 | 0,63 | 0,56 | 0,51 | 0,42 | 0,36 |
60 | 19,11 | 2,07 | 1,85 | 1,75 | 1,56 | 1,17 | 0,94 | 0,78 | 0,66 | 0,58 | 0,52 | 0,46 | 0,39 | 0,33 |
65 | 20,68 | 1,98 | 1,72 | 1,62 | 1,44 | 1,08 | 0,87 | 0,72 | 0,61 | 0,54 | 0,48 | 0,43 | 0,36 | 0,31 |
70 | 22,26 | 1,91 | 1,60 | 1,50 | 1,34 | 1,01 | 0,81 | 0,66 | 0,57 | 0,50 | 0,44 | 0,40 | 0,33 | 0,28 |
75 | 23,83 | 1,85 | 1,50 | 1,41 | 1,25 | 0,94 | 0,75 | 0,62 | 0,53 | 0,47 | 0,41 | 0,37 | 0,31 | 0,27 |
80 | 25,40 | 1,76 | 1,41 | 1,32 | 1,17 | 0,88 | 0,71 | 0,58 | 0,50 | 0,44 | 0,39 | 0,35 | 0,29 | 0,25 |
85 | 26,97 | 1,65 | 1,32 | 1,24 | 1,11 | 0,83 | 0,66 | 0,55 | 0,47 | 0,41 | 0,37 | 0,33 | 0,27 | 0,23 |
90 | 28,54 | 1,56 | 1,25 | 1,17 | 1,05 | 0,79 | 0,62 | 0,52 | 0,44 | 0,39 | 0,35 | 0,31 | 0,26 | 0,22 |
95 | 30,11 | 1,48 | 1,19 | 1,11 | 0,99 | 0,75 | 0,59 | 0,49 | 0,42 | 0,37 | 0,33 | 0,29 | 0,25 | 0,21 |
100 | 31,69 | 1,41 | 1,13 | 1,06 | 0,94 | 0,71 | 0,56 | 0,47 | 0,40 | 0,35 | 0,31 | 0,28 | 0,23 | 0,20 |
We can provide OEM orders according to your requirements and work with you to build your own formwork H20 Beams brand. Please contact our OEM Service Team.
