Leading Film Faced Plywood Manufacturing

    PANDAforest Groove Plywood
    PANDAforest Groove Plywood

PANDAforest Groove Plywood

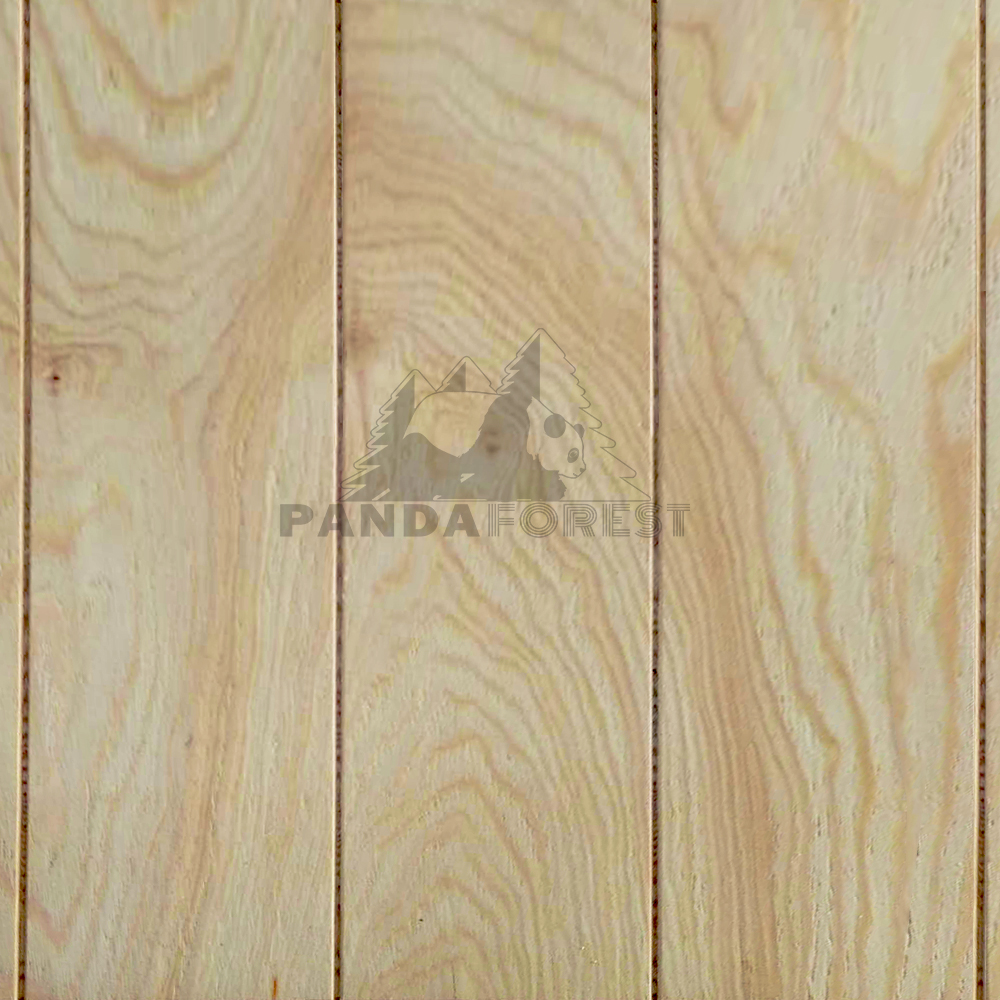

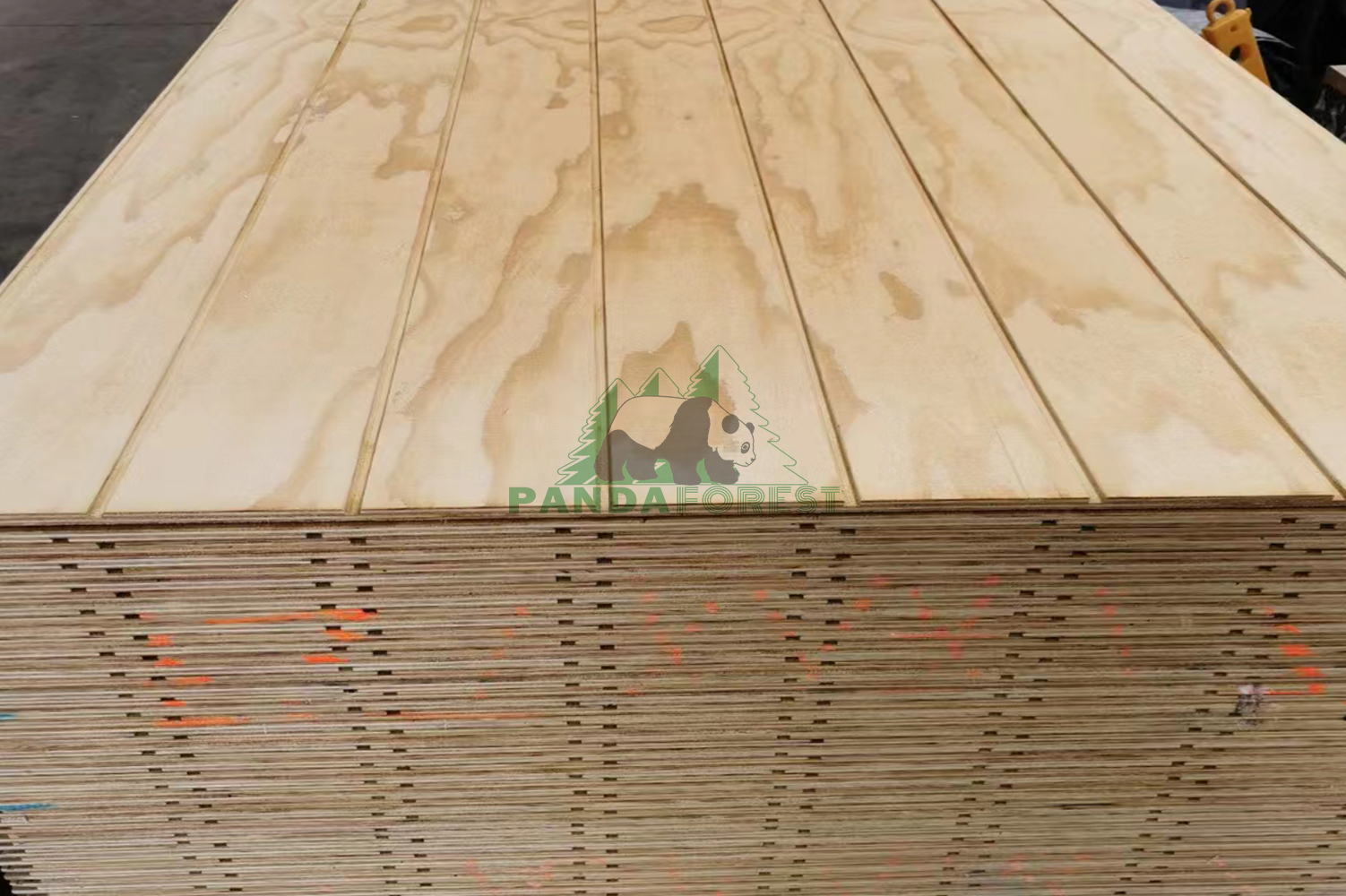

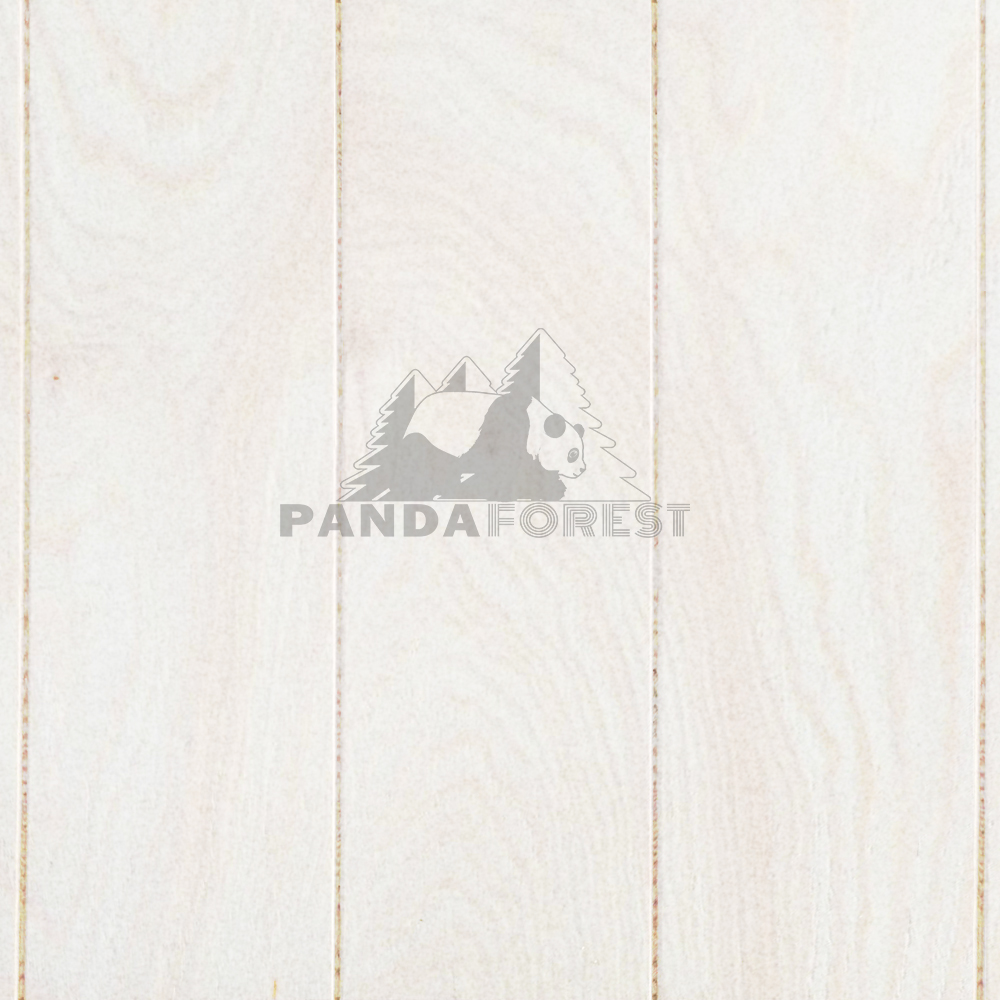

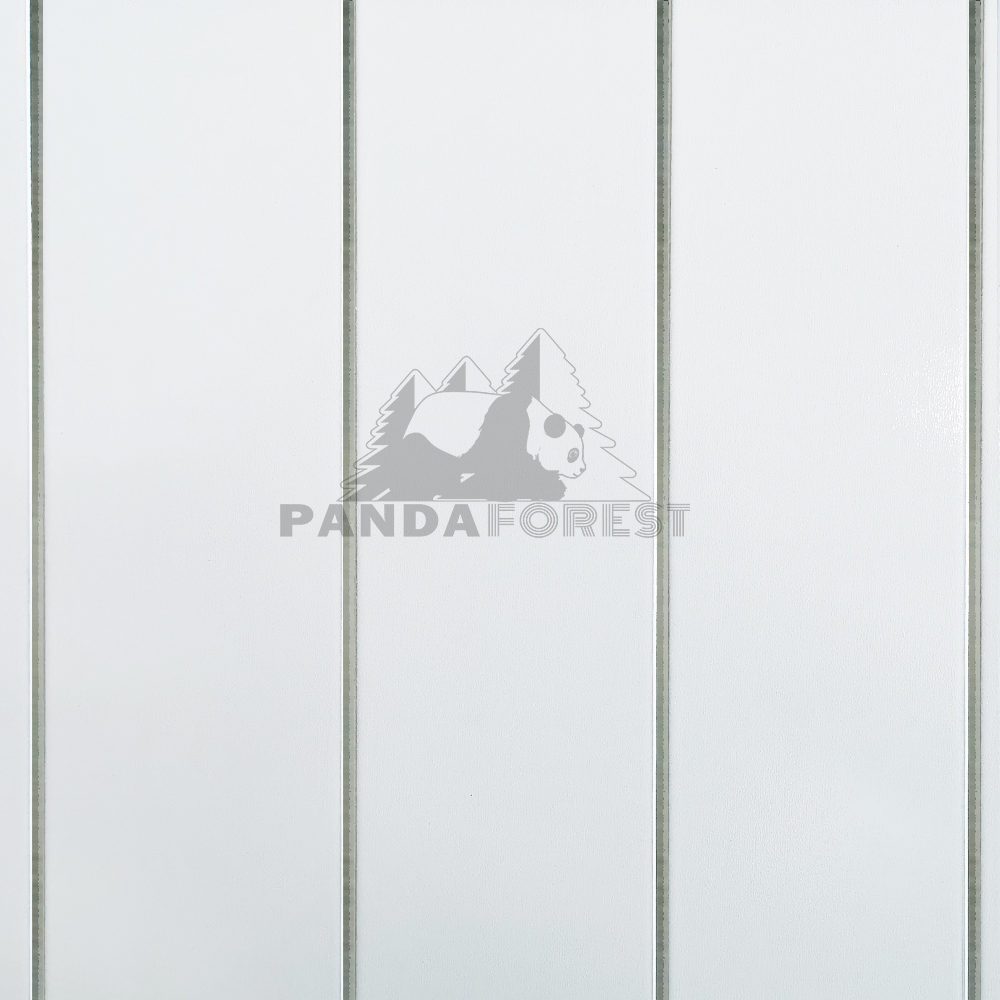

PANDAforest groove plywood use high-quality PANDAforest plywood as the base plate. After precision processing, we can provide a variety of grooving effects, such as V-shaped groove, W-shaped groove, U-shaped groove, T-shaped groove. We can also customize various 3D groove according to your drawing requirements. We can provide three stages of finished products for you to make the best choice according to your needs. RAW groove plywood, Pre-prime and Painted three kinds. And allows to specify any species plywood PANDAforest manufactures, giving designers and specifiers an abundant variety of natural wood grain and color pattern options.

  • PANDAforest groove plywood panels are widely used in both commercial and residential interiors for wall paneling, wainscoting, cabinet doors and cabinet backers. It can also be used in alfresco areas, around pools and as garden screens if choose PANDAforest marine plywood as base board.
  • PANDAforest plywood panels feature lending an architectural feel to the space at relatively little cost.
Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

Strural

Full birch veneers are arranged crosswise according to mechanical properties. Miter joint and hot melt wire connection are adopted to avoid excessive gap and ensure excellent hardness and stability.

Strural

The edges 4 times sealed with waterproof paint in the factory for minimise moisture penetration.

Bonding

Deep penetration, locking each layer of veneer. Special custom-made phenolic adhesives cross-bonded weather resistant glueing according to EN 314-2 / class 6.

FEATURES & BENEFITS

Slip-resistant and Wear resistant surface

Excellent strength and durability.

Stable mechanical properties.

Can be customized to your needs sharps.

Economical and environmentally friendly.

Support FSC and PEFC legally harvested resources.

Support OEM/ ODM service.

END USE

Vans Floor

Trailers Floor

Construction scaffolding

Stages, terraces

Sports fields and facilities

Playground structures and equipment

DIY

Face and Back

PADANforest – Antislip Trans plywood surface available in five common colors for choose – black, brown, grey, red and blue. Antislip coating density 220g/m2,can be made into single-sided anti-slip or double-sided anti-slip. Wear resistance value from 800 R to 1500 R (EN 438-2) depending on the coating.

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

SPECIFICATIONS

Type Size Layer up Weight                     (kg/sheet) Core
Materials
Packing
Unit
(sheets)
AA 1220x2440x6mm /=/ 10.5  Pine / Hardwood 100
AA 1220x2440x9mm /=/ 15.5  Pine / Hardwood 70
AA 1220x2440x12mm /=/ 20.5  Pine / Hardwood 50
AA 1220x2440x15mm /=/ 25.5  Pine / Hardwood 40
AA 1220x2440x18mm /=/ 31.0  Pine / Hardwood 35
AA 1220x2440x21mm /=/ 36.5  Pine / Hardwood 30
AA 1220x2440x25mm /=/ 43.0  Pine / Hardwood 25

Apart from the regular standard dimensions of 1220mm x 2440mm, also special thickness lengths are available (thickness form 6mm-28mm, max lengrh 3050mm).
Special dimensions available by request – there may be requirements for minimum quantity per special dimension.

FORMALDEHYDE EMISSION:E0  ≤0.03
Layer up:Cross-oriented
Moisture Content:8% – 15% (at time of despatch)
Dimensional Tolerances:±0.3mm
Straightness:±1.5mm
Density:650 kg/m³ (approximately)
Adhesive:E0
Joint Group:For nails, bolts and screws
Finish:groove faces, Pre-prime groove faces, painted groove faces / T&G edge
Branding:Each pallet of PANDAFOREST plywood is branded as least once with the product name for identification and evidence of compliance with manufacturing control standards
Storage:Store on level bearers at maximum 1800mm centres well clear of the ground, and cover to keep dry but allow ventilation
Source:Plantation timber



OEM Service

PANDAforest groove plywood using the latest resin and continuous press technology, we have the flexibility to customize specific properties, lengths, widths, thicknesses, and surface characteristics.
China Forest Products Supply manufactures groove plywood products serving a range of industrial purposes and requirements. Whatever the need, our industrial team applies industry-leading technology to manufacture plywood panels to exacting specifications.
We can provide OEM orders according to your requirements and work with you to build your own groove plywood produts brand. Please contact our OEM Service Team.
