Home » Products » PANDAFOREST Formply F22
    pandaforest f22 formply
    pandaforest f22 formply

PANDAFOREST Formply F22

PANDAforest F22 Formply is manufactured in strict accordance with AS 6669 and AS/NZS2269 standards. Explore our high-quality Formply F22, the perfect solution for robust and efficient construction. Our Formwork Plywood F22 is engineered to offer exceptional durability and reliability. Ideal for various building projects, Form Ply F22 guarantees strength and ease of use, ensuring your construction work is not only faster but also safer. With our commitment to quality, every piece of Formply F22 meets the highest standards, providing an unbeatable combination of performance and value.

  • Its excels in all functions over other building formply.
  • PANDAforest F22 Formply superior span capability makes it ideal for various formwork applications (Horizontal formwork, Vertical formwork, Special formwork, Frame formwork systems).
  • PANDAforest Formply F22 is rated F22/F22 for stiffness (MoE) and F27/F27 for strength (f’b) giving it the properties of high strength and stiffness, a design feature that can save money providing even more cost effective formwork systems.
Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

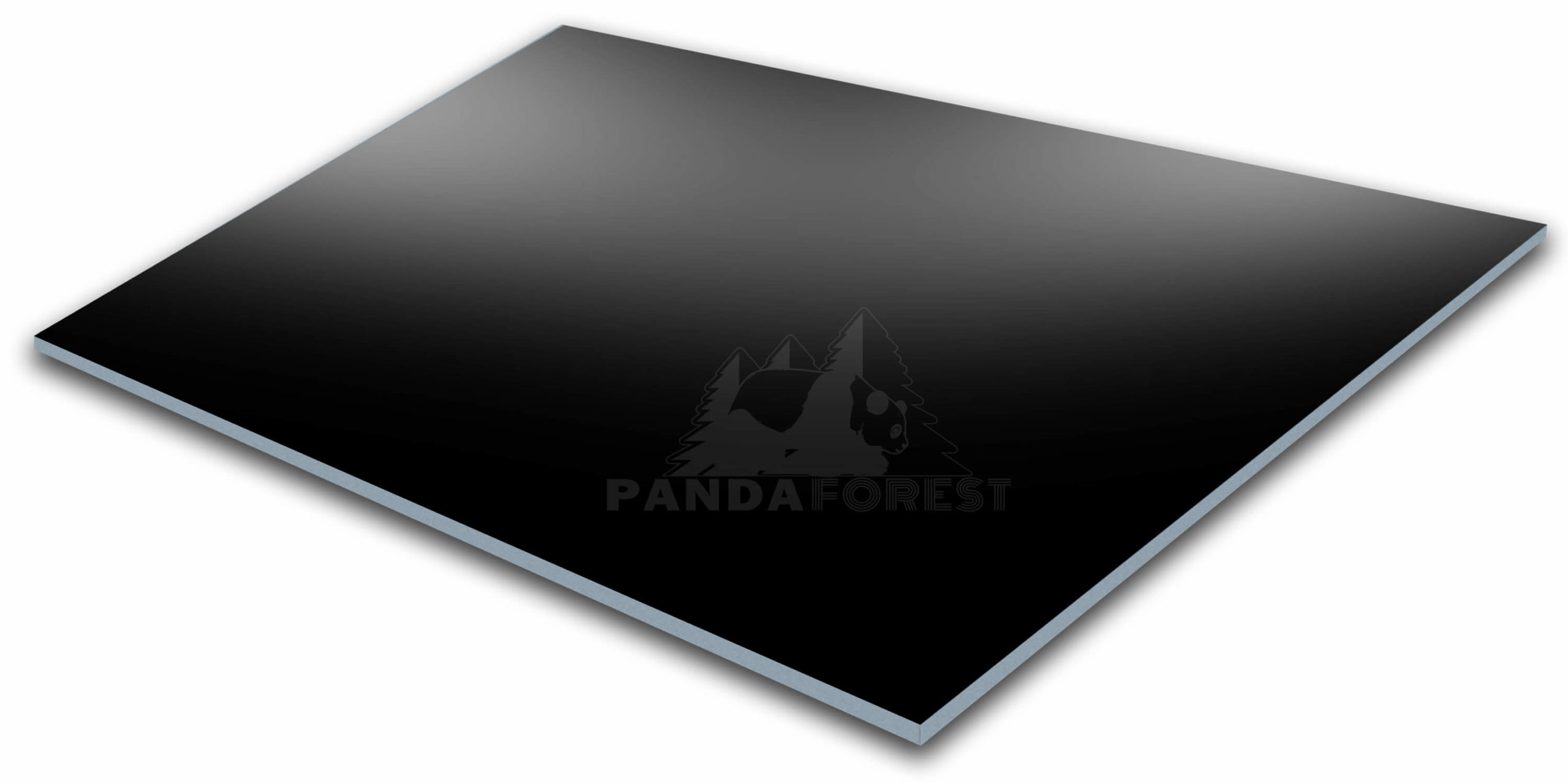

Face and Back

Black High-density waterproof film 120 g/m2 or 220g/m2. Smooth and flat surface on both sides, solid, waterproof and wear-resistant. The film-faced surface of the panel creates high stability to various natural and chemical conditions.Easy Build high-quality flat concrete surfaces.

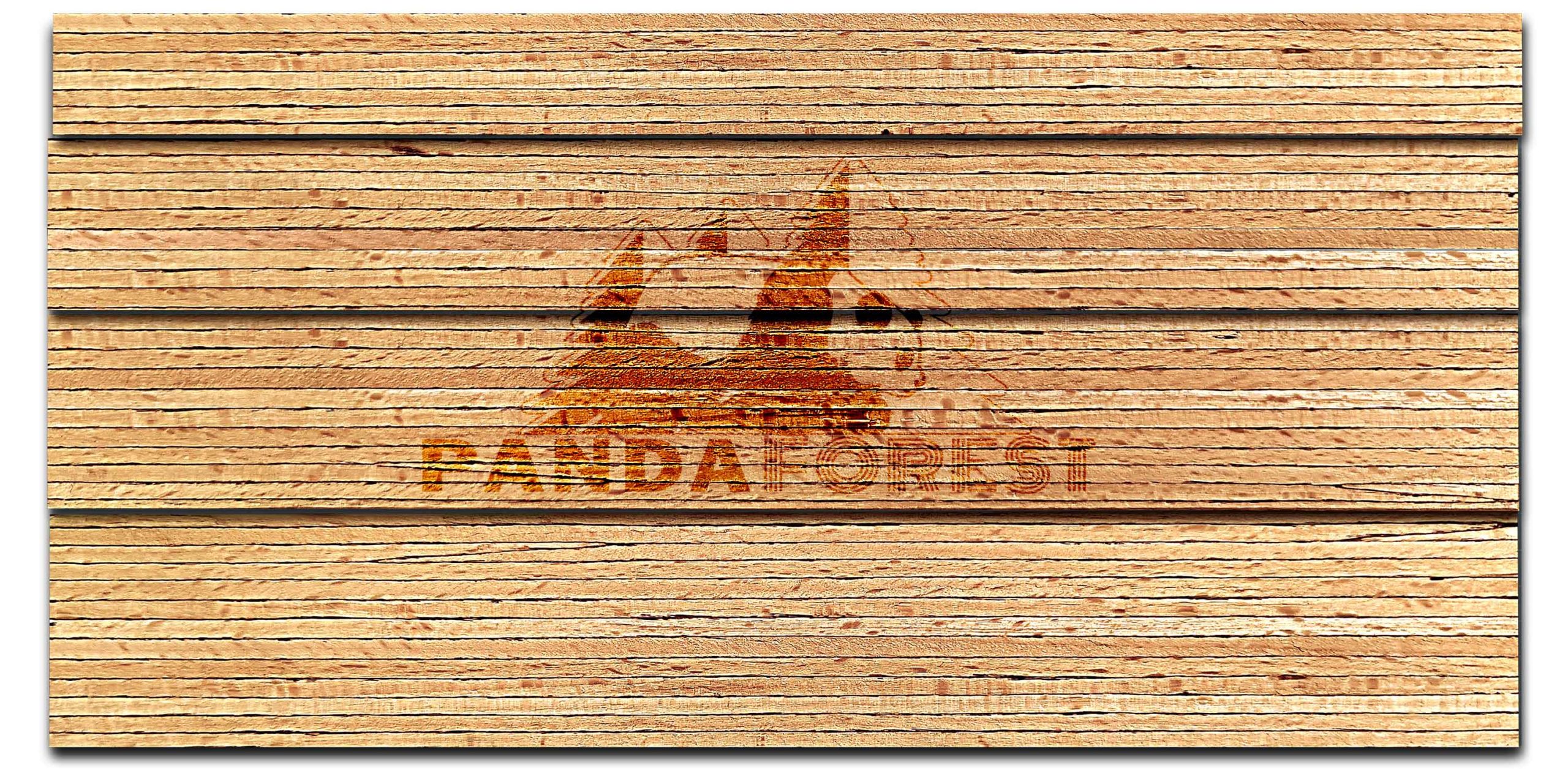

Strural

Full hardwood veneers are arranged crosswise according to mechanical properties. Miter joint and hot melt wire connection are adopted to avoid excessive gap and ensure excellent hardness and stability.

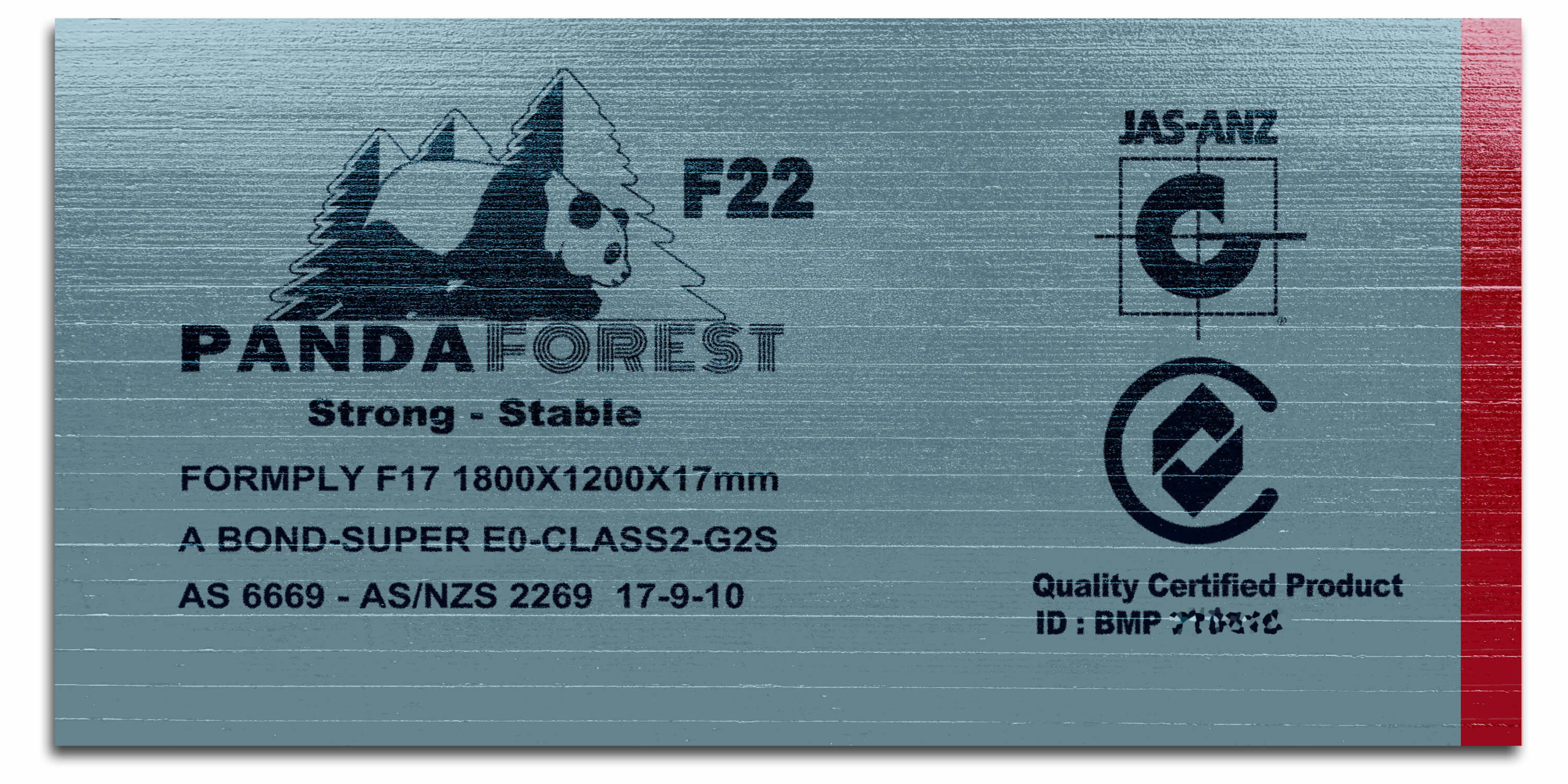

Edges

The edges 4 times sealed with water-dispersible acrylic paint in the factory for minimise moisture penetration. Grey edge red stripe.

Bonding

Special custom-made A Bond phenolic adhesives cross-bonded weather resistant glueing according to AS/NZS 2098.2. Deep penetration, locking each layer of veneer.

FEATURES & BENEFITS

◎The smooth film on both sides is smooth, waterproof and hard.
◎Excellent strength and durability.
◎Stable mechanical properties.
◎Exact size, can be customized to your needs.
◎Reduces work time and labor costs.
◎Support FSC and PEFC legally harvested resources.
◎Support OEM/ ODM service.

END USE

◎Building & construction
◎Vehicle industry
◎Internal & external design
◎Hoardings and fencings
◎Packing

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

SPECIFICATIONS

Grade Size Weight               (kg/sheet) Core
Materials		 Packing
Unit
(sheets)
F22 G2S 1800x1200x12mm 17.5 Full Hradwood 55 or 60
F22 G2S 1800x1200x17mm 25 Full Hradwood 40 or 43
F22 G2S 1800x1200x25mm 36.5 Full Hradwood 27 or 29
F22 G2S 2400x1200x12mm 23.5 Full Hradwood 60 or 77
F22 G2S 2400x1200x17mm 33 Full Hradwood 43 or 54
F22 G2S 2400x1200x25mm 49 Full Hradwood 29 or 37



Apart from the regular standard dimensions of 1.25 m x 2.5 m and 1.5 m x 3.0 m, also special lengths are available (1.5 m x 3.6 m and/or 4.0 m).
Special dimensions available by request – there may be requirements for minimum quantity per special dimension.

OEM Service

We can provide OEM orders according to your requirements and work with you to build your own formply brand. Please contact our OEM Service Team.
