    PANDAFOREST Formply F17
    PANDAFOREST Formply F17

PANDAFOREST Formply F17

PANDAforest F17 Formply is a certified formwork plywood. It manufactured to AS 6669 and AS/NZS2269 standards. Panda Forest premium Formply F17, the ideal choice for modern construction projects. Panda Forest Formwork Plywood F17 is designed to enhance the efficiency and durability of yPanda Forest builds. Whether you’re working on a small project or a large-scale construction, Form Ply F17 is yPanda Forest go-to solution for stability and performance. Crafted to meet stringent standards, Panda Forest Formply F17 stands out in terms of quality, ensuring that yPanda Forest construction efforts are supported by the best materials in the industry.

  • The self-designed criss-cross superposition structure not only improves the mechanical properties of the entire board, but also makes the template size more stable.
  • PANDAforest F17 Formply surface waterproof film layer is specially developed and customized for Australian weather and construction site conditions.
  • PANDAforest F17 Formply is more durable and easy to peel from concrete.
  • Make smooth and beautiful concrete casting surface.
  • It is universal casting formwork plywood that can be used in numerous different applications from frame systems to special formwork projects.
Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

Face and Back

Black High-density waterproof film 120 g/m2 or 220g/m2. The smooth film surface is smooth, glossy and hard. It resists abrasion, it is weather and moisture proof and resists commonly used chemicals, dilute acids and alkalis. The surface is easy to clean with water or steam. Can be re-used many times.

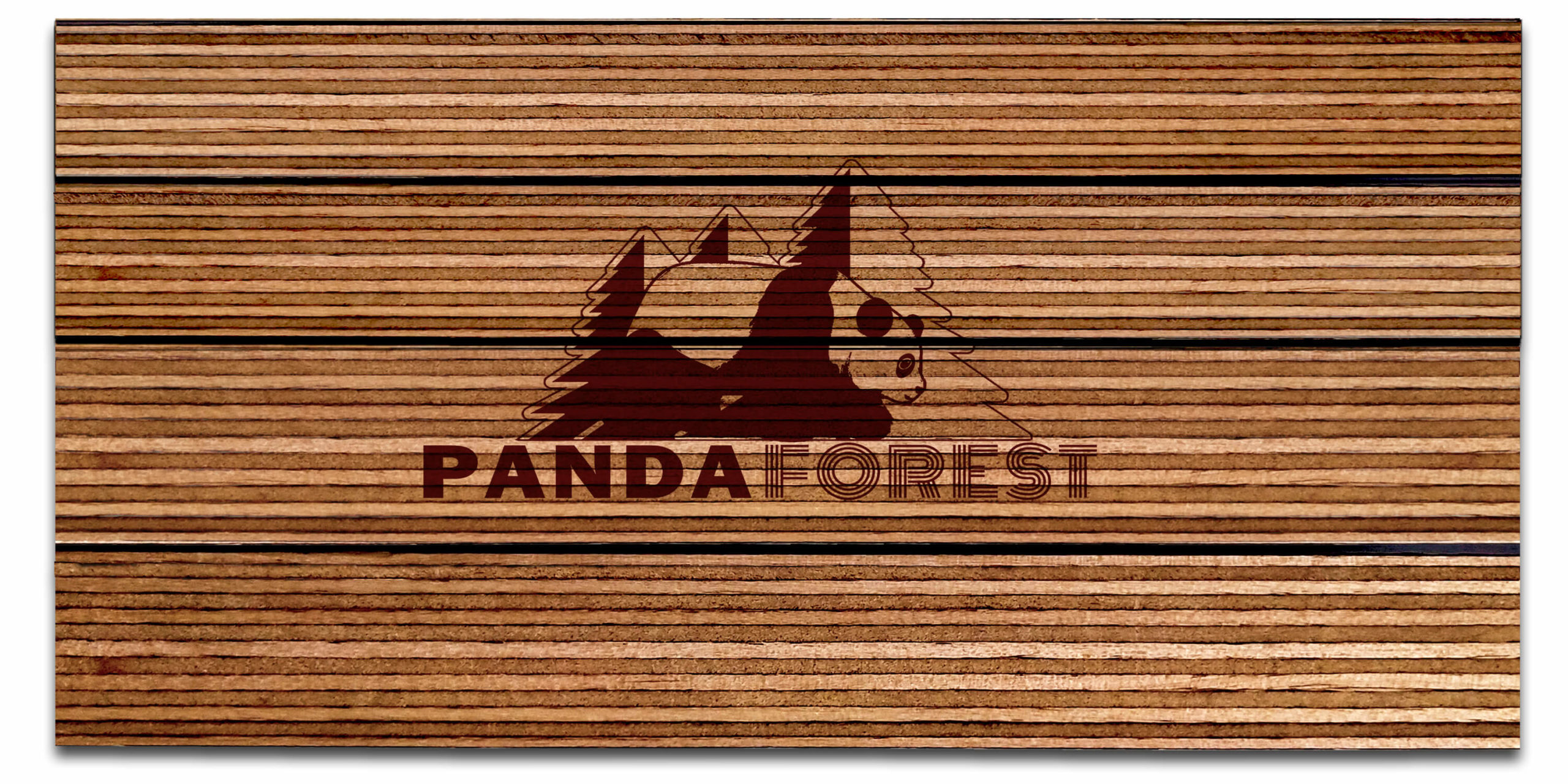

Strural

Full hardwood veneers are arranged crosswise according to mechanical properties. Miter joint and hot melt wire connection are adopted to avoid excessive gap and ensure excellent hardness and stability.

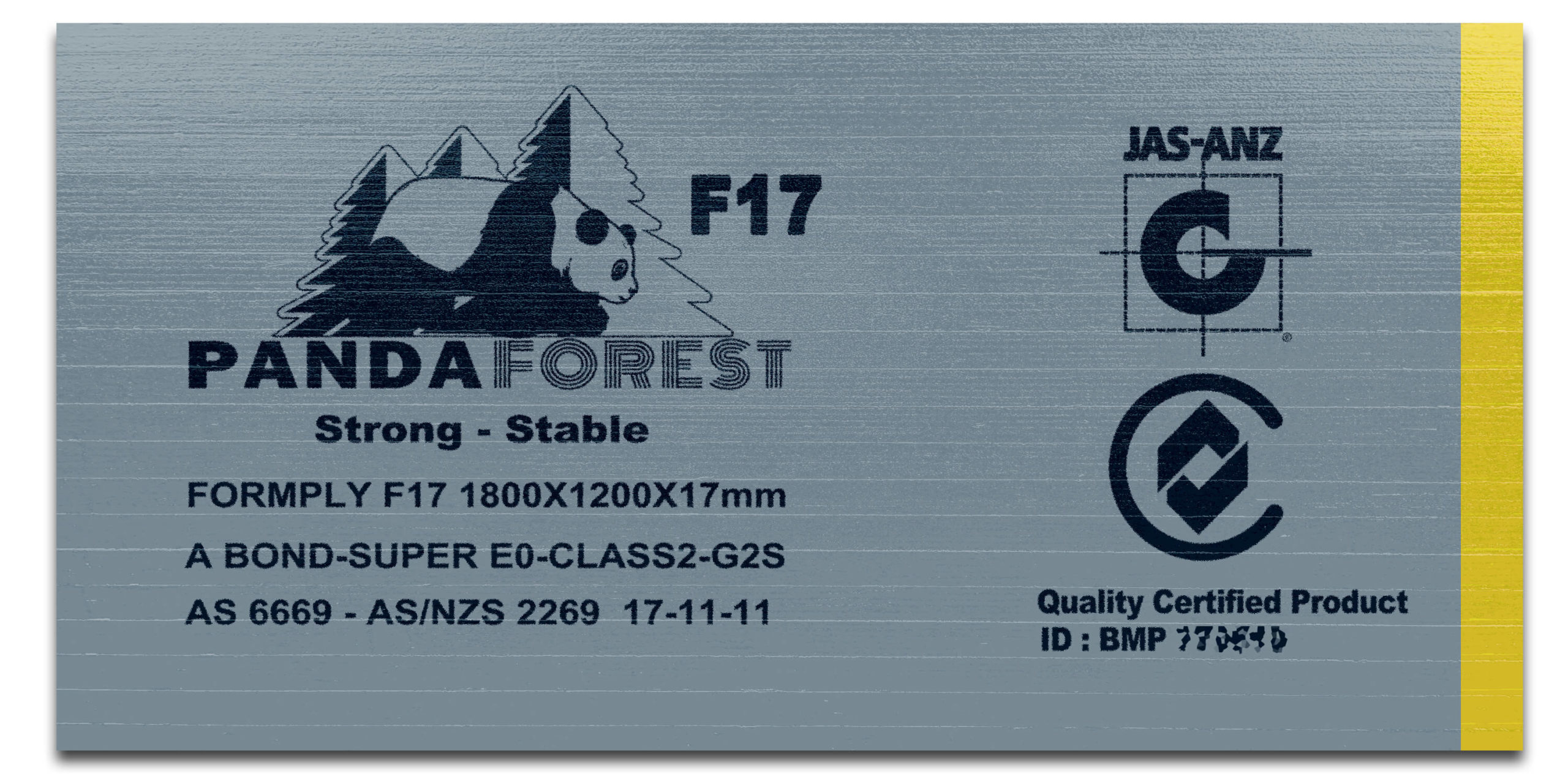

Edges

The edges 4 times sealed with water-dispersible acrylic paint in the factory for minimise moisture penetration. Grey edge yellow stripe.

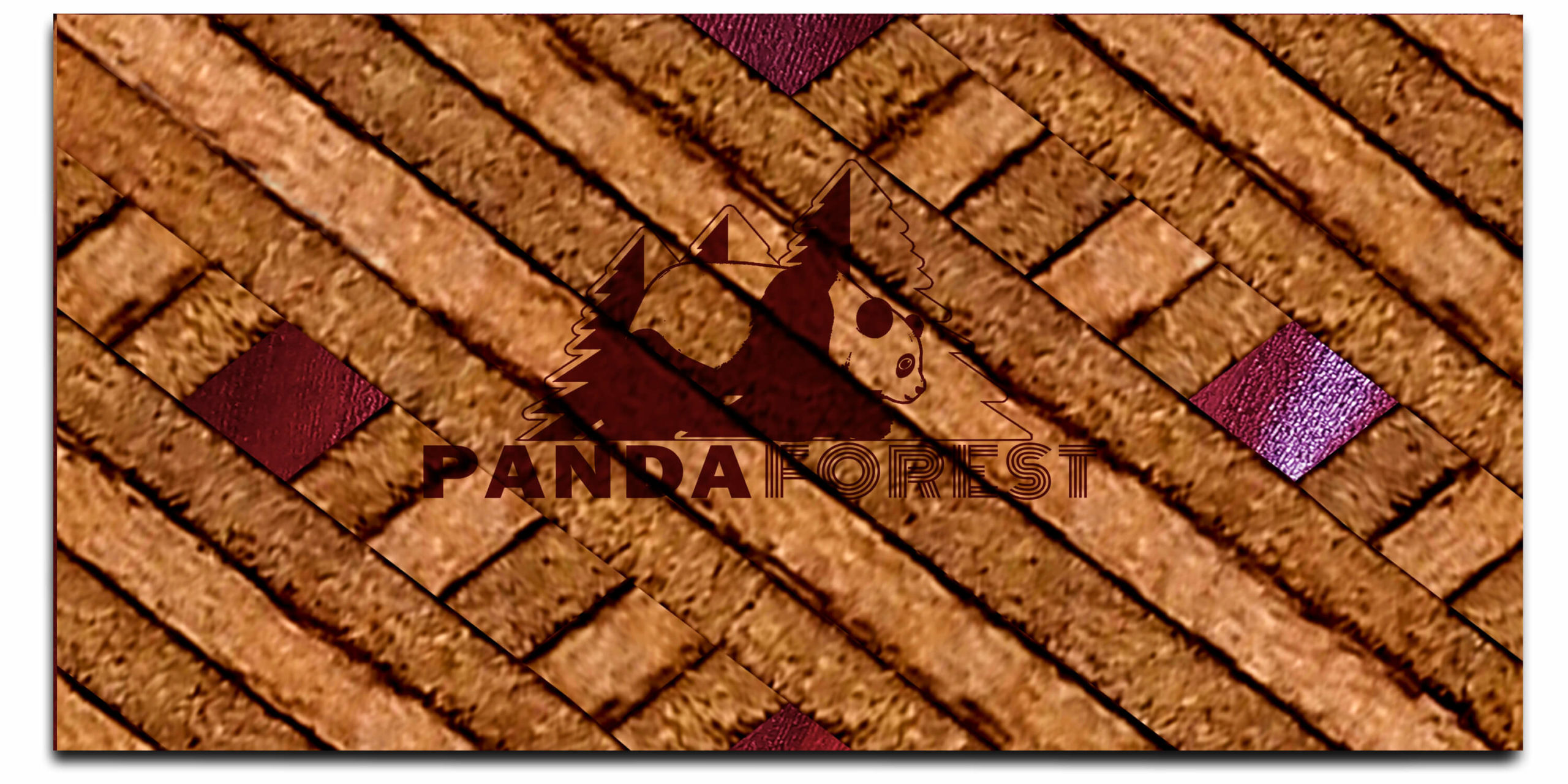

Bonding

Special custom-made A Bond phenolic adhesives cross-bonded weather resistant glueing according to AS/NZS 2098.2. Deep penetration, locking each layer of veneer.

FEATURES & BENEFITS

◎The smooth film on both sides is smooth, waterproof and hard.
◎Excellent strength and durability.
◎Stable mechanical properties.
◎Exact size, can be customized to your needs.
◎Reduces work time and labor costs.
◎Support FSC and PEFC legally harvested resources.
◎Support OEM/ ODM service.

END USE

◎Building & construction
◎Vehicle industry
◎Internal & external design
◎Hoardings and fencings
◎Packing

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

SPECIFICATIONS

Grade Size Weight               (kg/sheet) Core
Materials
Packing
Unit
(sheets)
F17 G2S 1800x1200x12mm 16.5 Full Hradwood 55 or 60
F17 G2S 1800x1200x17mm 23.5 Full Hradwood 40 or 43
F17 G2S 1800x1200x25mm 34.5 Full Hradwood 27 or 29
F17 G2S 2400x1200x12mm 22 Full Hradwood 60 or 77
F17 G2S 2400x1200x17mm 31 Full Hradwood 43 or 54
F17 G2S 2400x1200x25mm 46 Full Hradwood 29 or 37



Apart from the regular standard dimensions of 1.25 m x 2.5 m and 1.5 m x 3.0 m, also special lengths are available (1.5 m x 3.6 m and/or 4.0 m).
Special dimensions available by request – there may be requirements for minimum quantity per special dimension.

OEM Service

We can provide OEM orders according to your requirements and work with you to build your own formply brand. Please contact our OEM Service Team.
