Home » Products » PANDAFOREST Formply F14
    PANDAFOREST Formply F14
    PANDAFOREST Formply F14

PANDAFOREST Formply F14

PANDAforest F14 Formply is a cost effective construction plywood manufactured to standard of AS 6669 and AS/NZS 2269. The strength of Formply F14, a top-tier option for all your construction demands. Our Formwork Plywood F14 is crafted to ensure maximum durability and efficiency in building. Suitable for a variety of construction tasks, Form Ply F14 offers the robustness and reliability needed in today’s fast-paced building environments. With a focus on quality and performance, our Formply F14 is the smart choice for contractors and builders who demand the best.

  • Made of whole eucalyptus veneer and A Bond E0 adhesive under high temperature and high pressure.
  • PANDAforest Formply F14 is rated F14/F14 for stiffness (MoE) and F17/F17 for strength (f’b) giving it the properties of high strength and stiffness, a design feature that can save money providing even more cost effective formwork systems.
Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

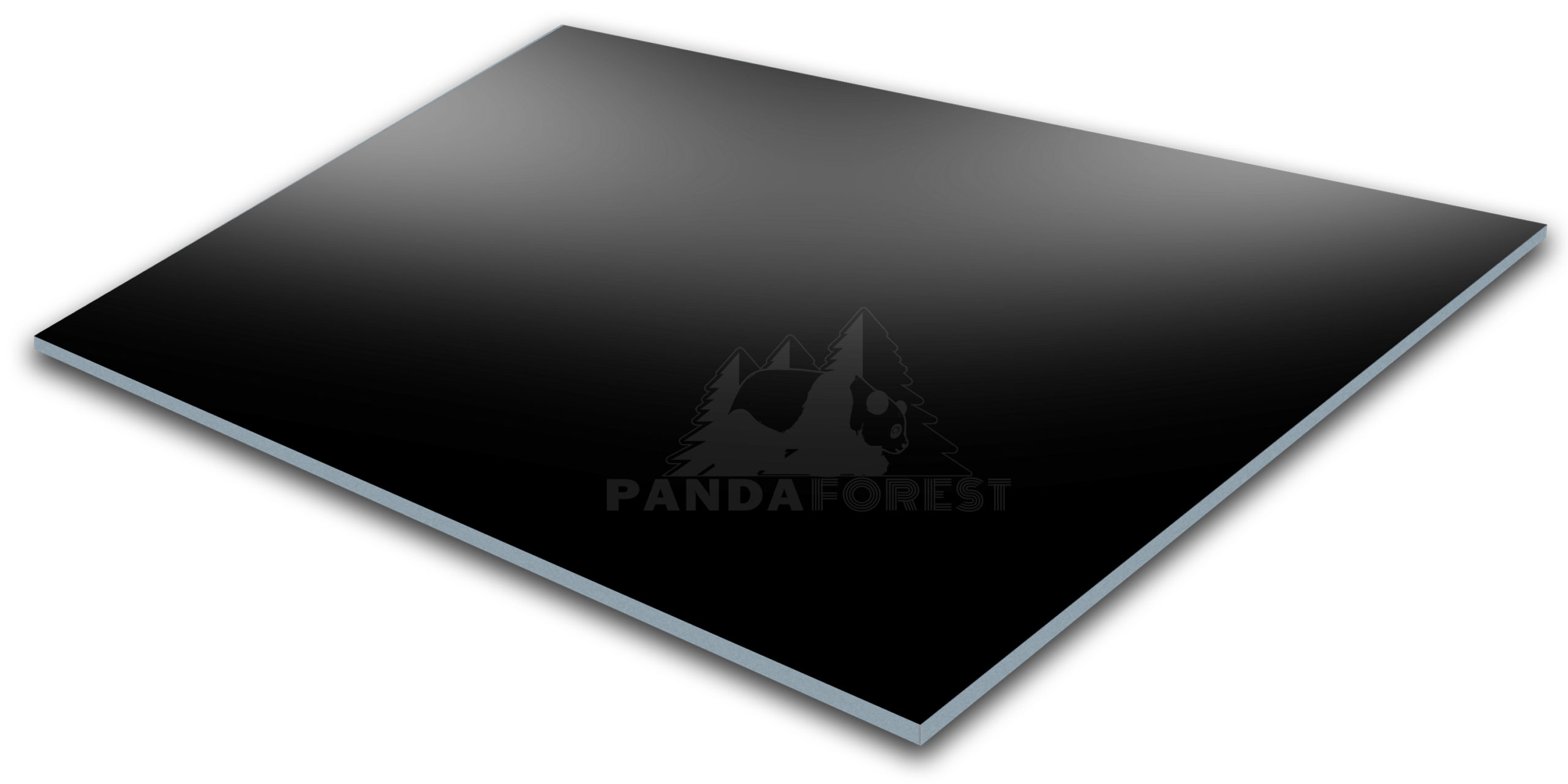

Face and Back

Black High-density waterproof film 120 g/m2 or 220g/m2. , glossy and hard. It resists abrasion, it is weather and moisture proof and resists commonly used chemicals, dilute acids and alkalis. The surface is easy to clean with water or steam. Can be re-used many times.

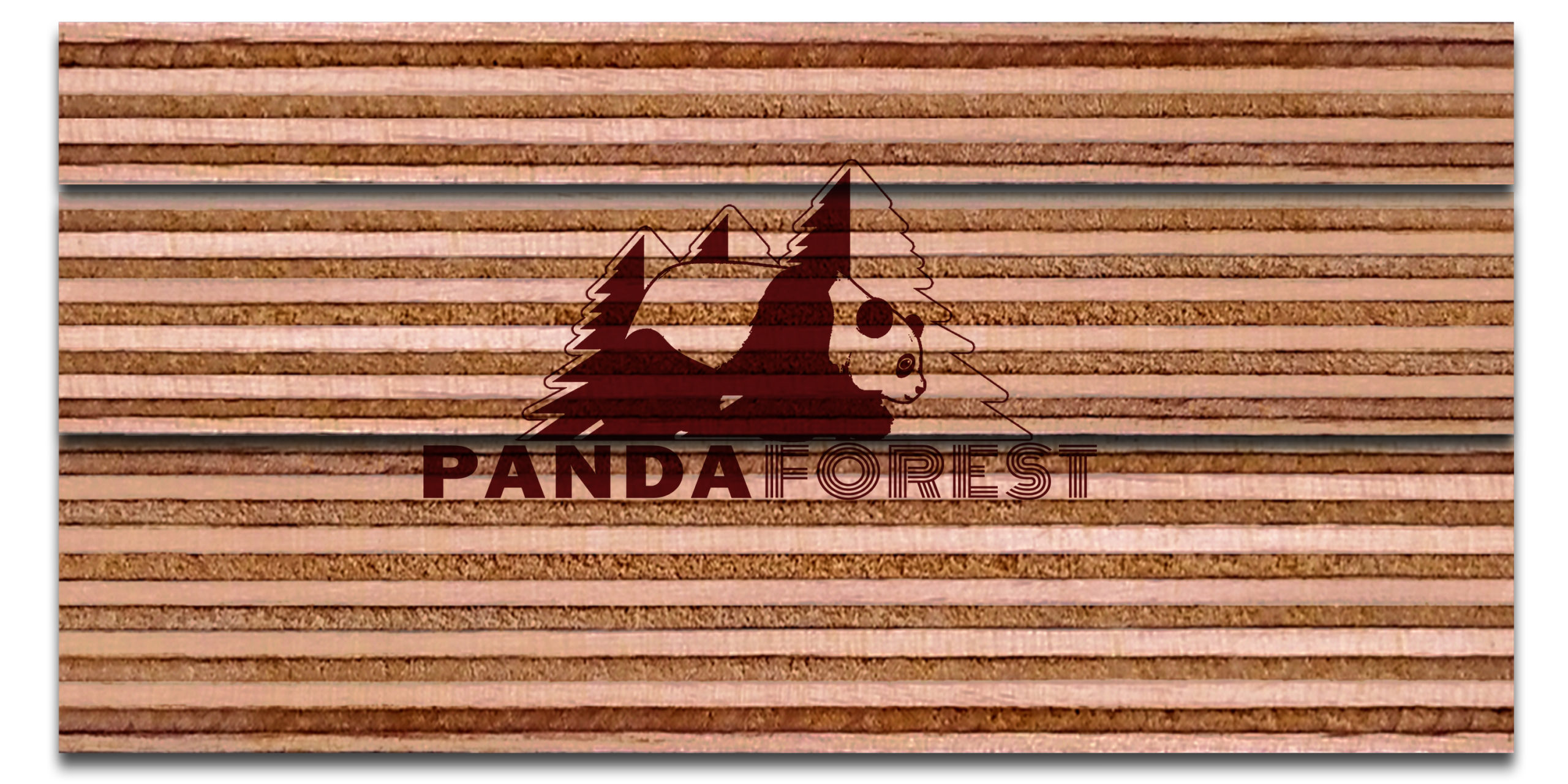

Strural

Hradwood veneers are arranged crosswise according to mechanical properties. Hot melt wire connection are adopted to avoid excessive gap and ensure excellent hardness and stability.

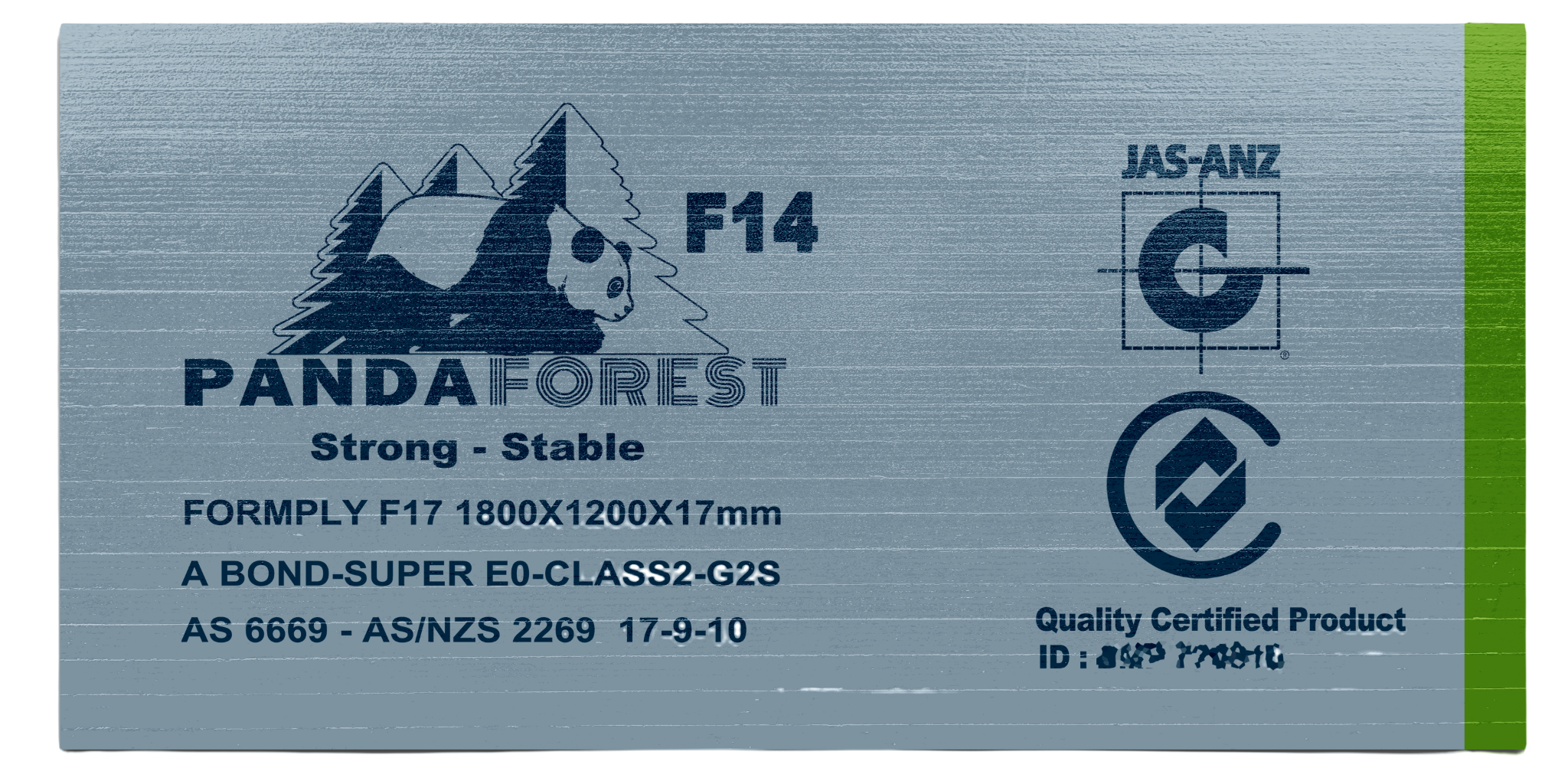

Edges

The edges 4 times sealed with waterproof paint in the factory for minimise moisture penetration. Grey edge green stripe.

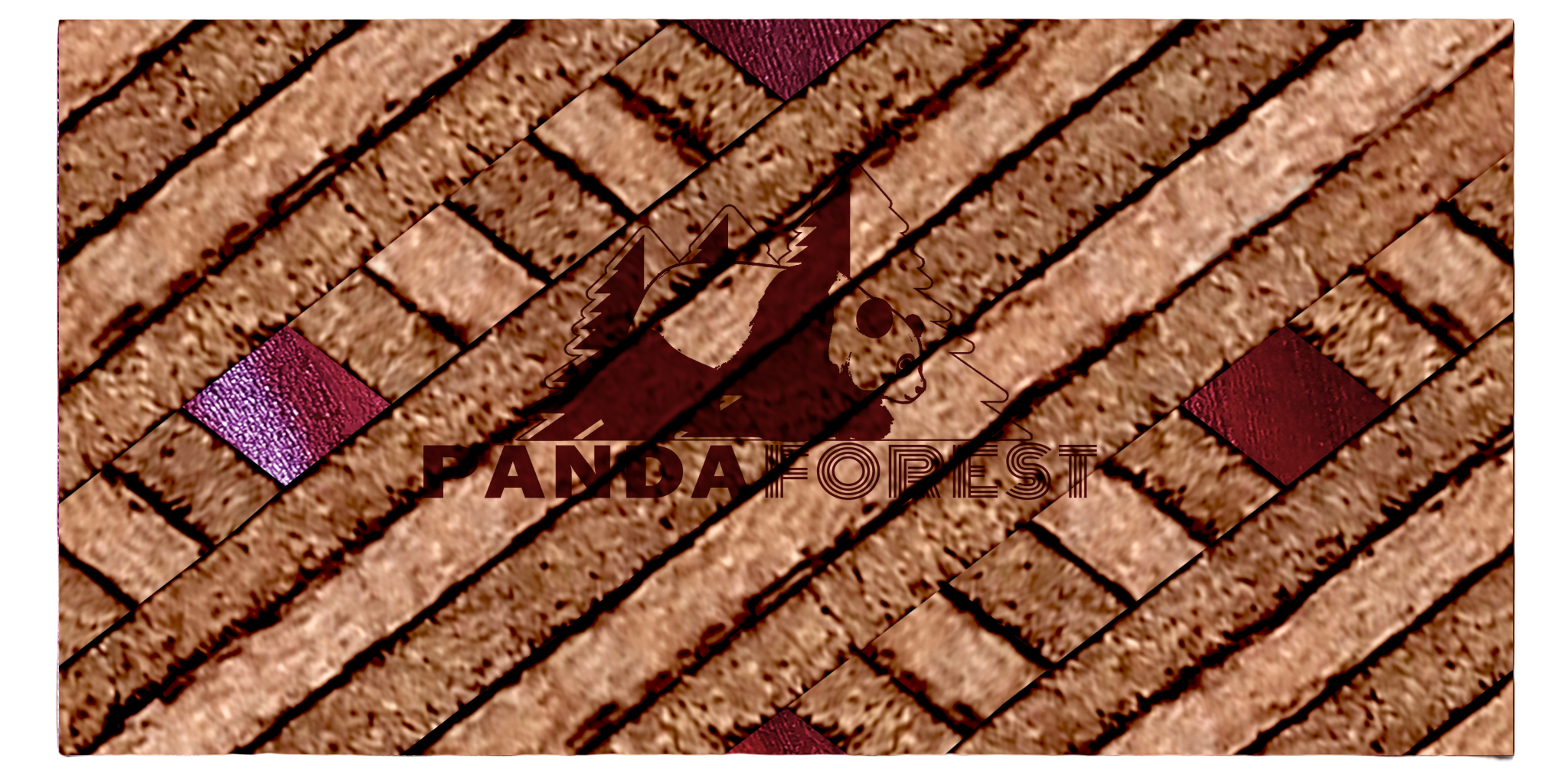

Bonding

Special custom-made A Bond phenolic adhesives cross-bonded weather resistant glueing according to AS/NZS 2098.2. Deep penetration, locking each layer of veneer.

FEATURES & BENEFITS

◎ Smooth and wear-resistant on both sides.
◎ Excellent strength and durability.
◎ Stable mechanical properties.
◎ Can be customized to your needs.
◎ Economical and environmentally friendly.
◎ Support FSC and PEFC legally harvested resources.
◎ Support OEM/ ODM service.

END USE

◎ Horizontal formwork

◎ Vertical formwork

◎ Special formwork

◎ Frame formwork systems

◎ DIY

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

SPECIFICATIONS

Grade Size Weight               (kg/sheet) Core
Materials		 Packing
Unit
(sheets)
F14 G2S 1800x1200x12mm 16 Full Eucalyptus 55 or 60
F14 G2S 1800x1200x17mm 22.5 Full Eucalyptus 40 or 43
F14 G2S 1800x1200x25mm 33.5 Full Eucalyptus 27 or 29
F14 G2S 2400x1200x12mm 21 Full Eucalyptus 60 or 77
F14 G2S 2400x1200x17mm 30 Full Eucalyptus 43 or 54
F14 G2S 2400x1200x25mm 44.5 Full Eucalyptus 29 or 37



Apart from the regular standard dimensions of 1.25 m x 2.5 m and 1.5 m x 3.0 m, also special lengths are available (1.5 m x 3.6 m and/or 4.0 m).
Special dimensions available by request – there may be requirements for minimum quantity per special dimension.



OEM Service

We can provide OEM orders according to your requirements and work with you to build your own formply brand. Please contact our OEM Service Team.
