    Film Faced Plywood Birch
    Film Faced Plywood Birch

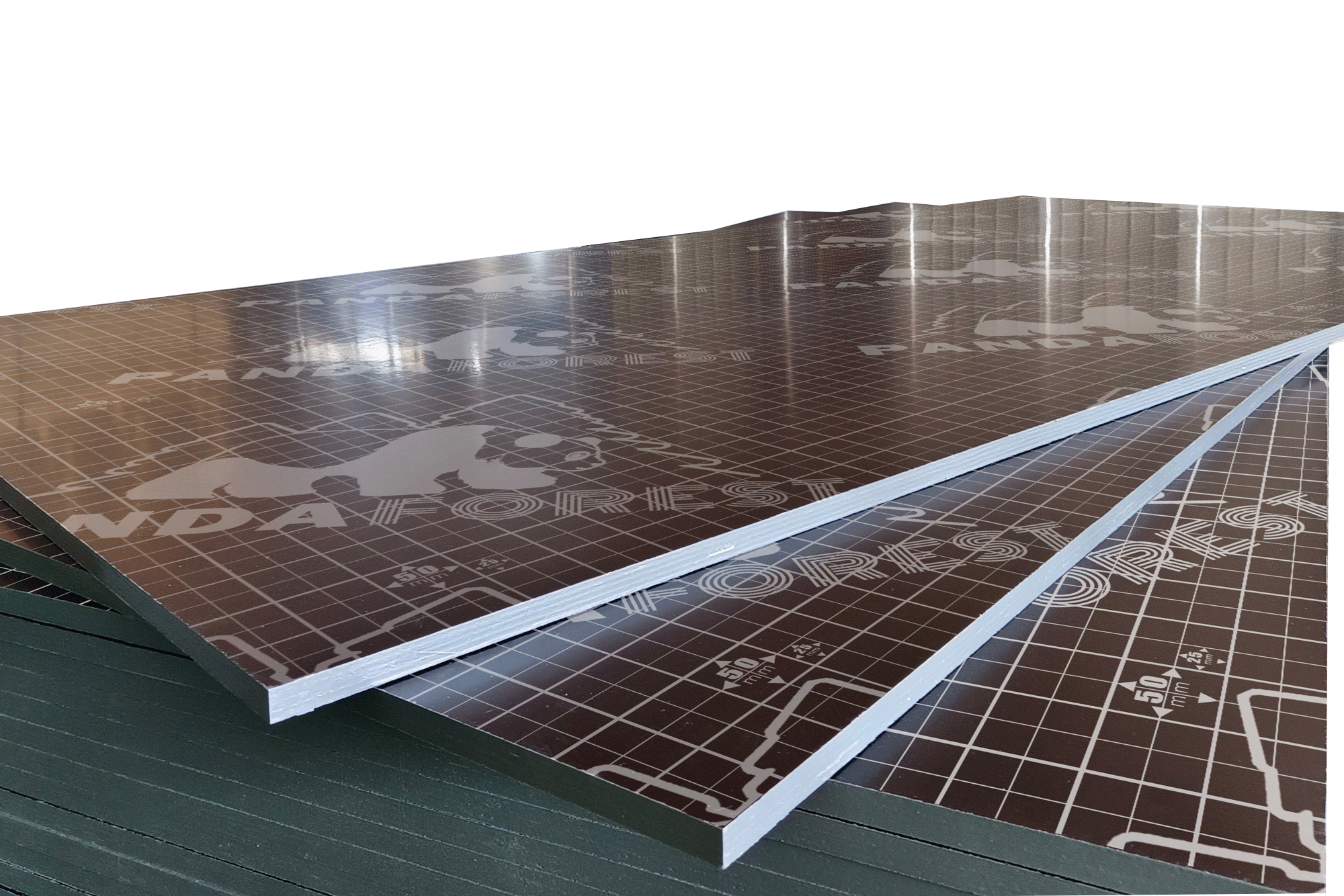

PANDAFOREST Film Faced Plywood Birch

PANDAforest film faced plywood birch is building templates recommended by numerous global architects, PANDAforest film faced plywood birch is a universal casting plywood panel that can be used for many different applications, from frame system to special template system. Dynea-Aica (a world-renowned plywood adhesives brand) supplies PANDAforst with custom-made phenolic adhesives and waterproof film.

  • It firmly glues birch veneers together under high temperature and high pressure, Newly designed veneer arrangement structure enables to have more excellent strength and stable mechanical properties than similar products.
  • Pandaforst can provide a variety of sizes and styles according to customers’ needs, as well as OEM customization to meet customers’ different needs.



Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

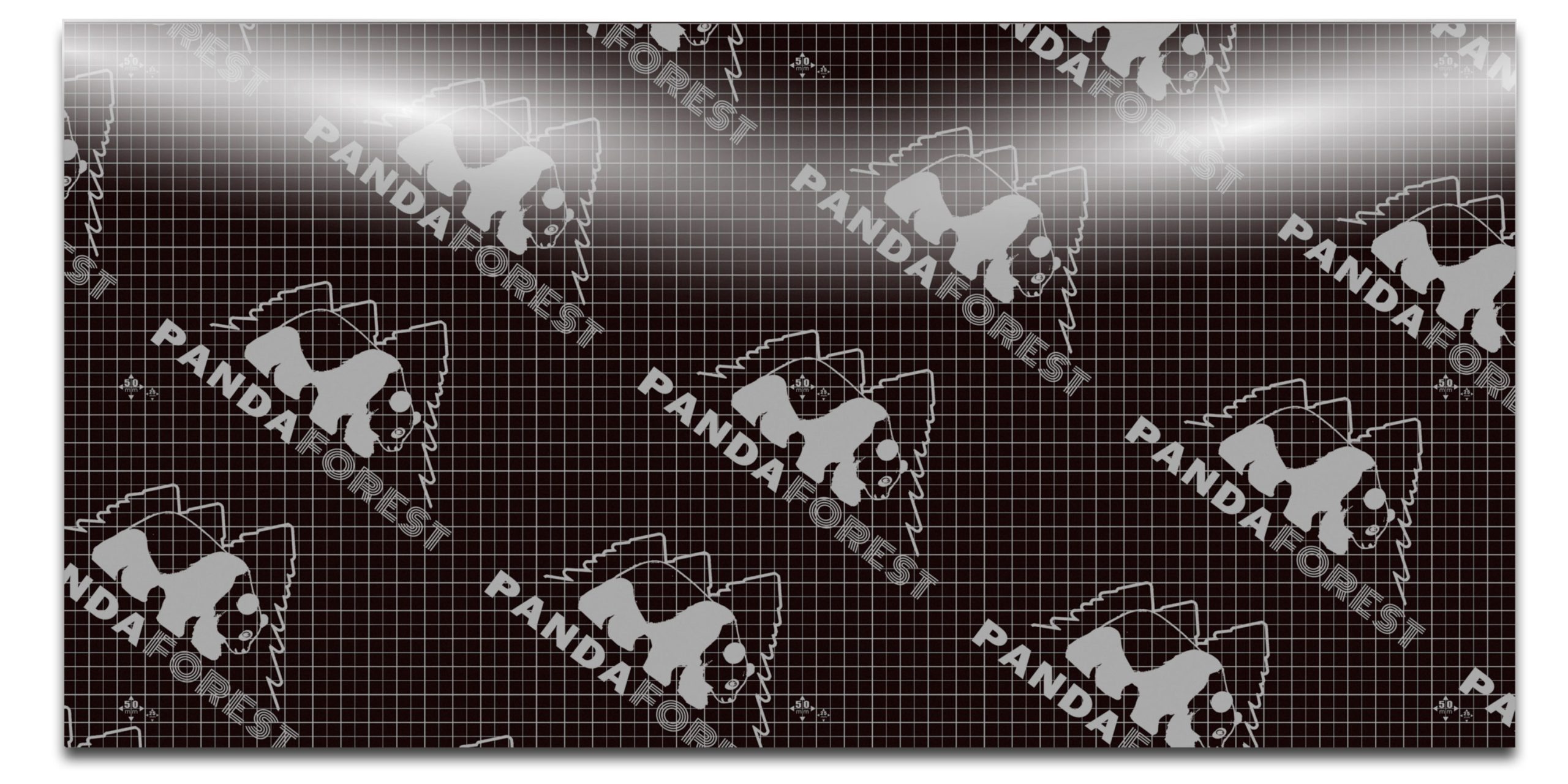

Face and Back

Dark brown phenolic film 120 g/m2 or 220g/m2. Smooth and flat surface on both sides, solid, waterproof and wear-resistant. The film-faced surface of the panel creates high stability to various natural and chemical conditions.Easy Build high-quality flat concrete surfaces.

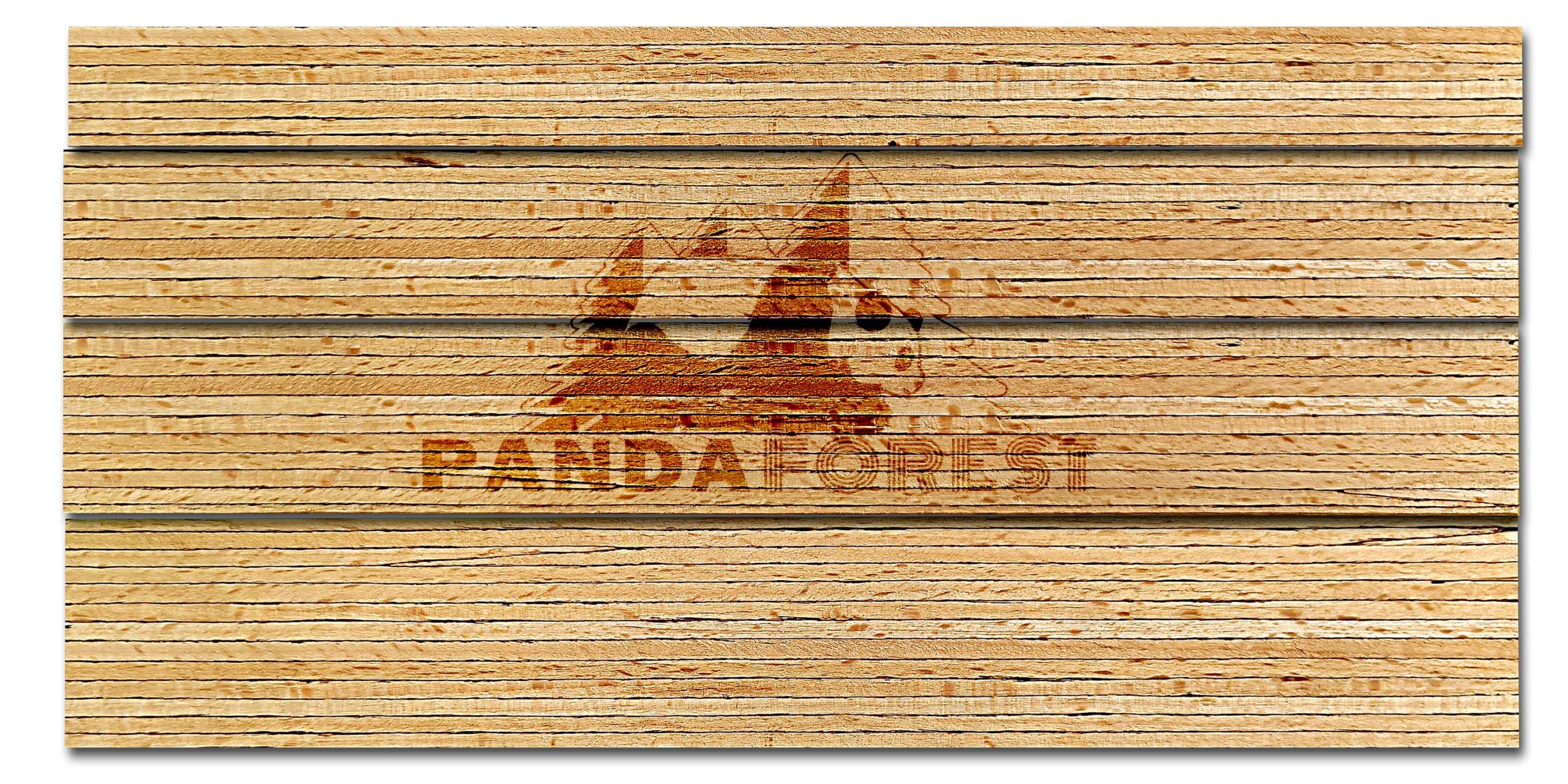

Strural

Full birch veneers are arranged crosswise according to mechanical properties. Miter joint and hot melt wire connection are adopted to avoid excessive gap and ensure excellent hardness and stability.

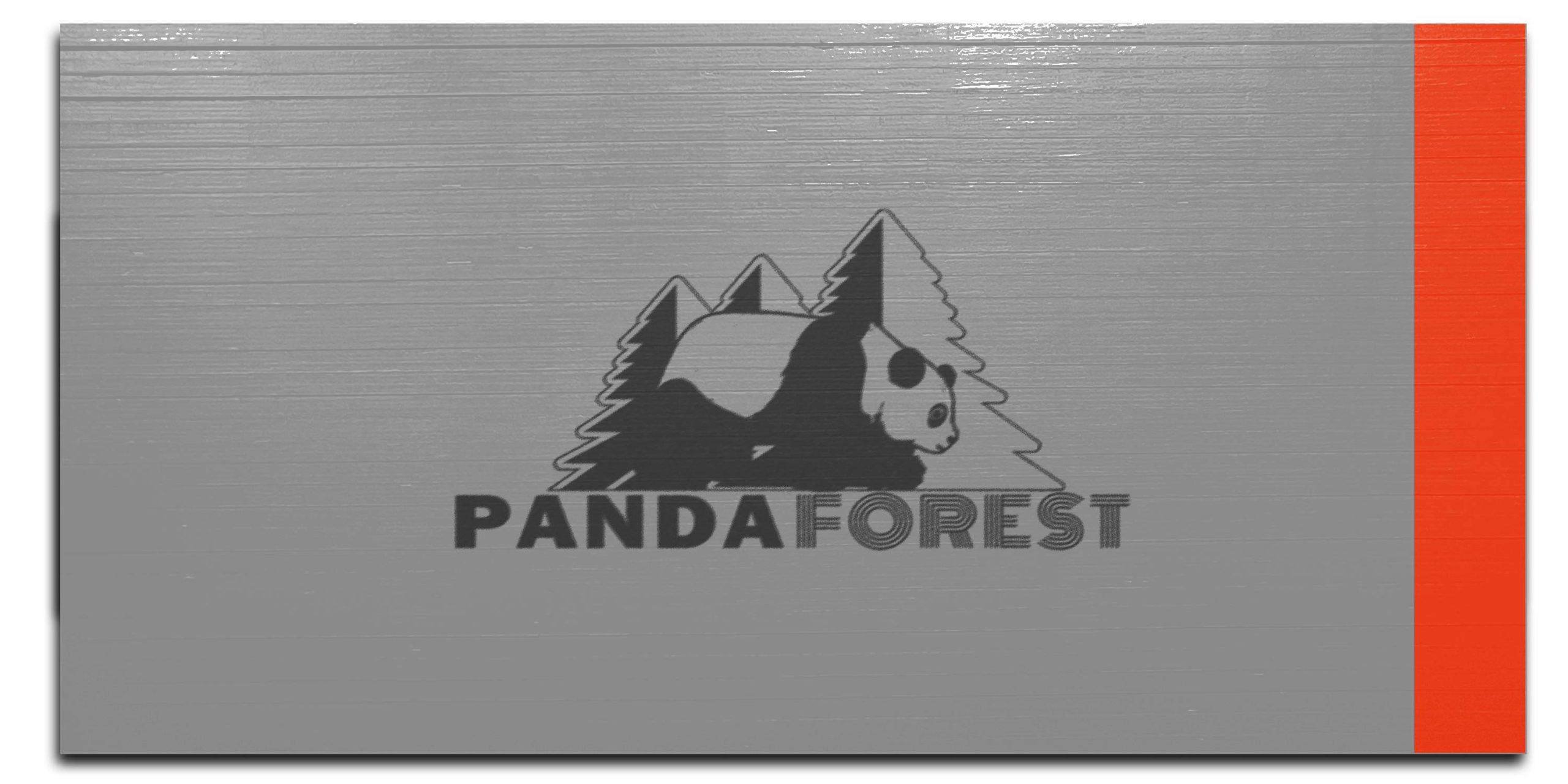

Edges

The edges 4 times sealed with waterproof paint in the factory for minimise moisture penetration. Grey edge red stripe.

Bonding

Deep penetration, locking each layer of veneer. Special custom-made phenolic adhesives cross-bonded weather resistant glueing according to EN 314-2 / class 6.

FEATURES & BENEFITS

Smooth and wear-resistant on both sides.

Excellent strength and durability.

Stable mechanical properties.

Can be customized to your needs.

Economical and environmentally friendly.

Support FSC and PEFC legally harvested resources.

Support OEM/ ODM service.

END USE

Horizontal formwork

Vertical formwork

Special formwork

Frame formwork systems

DIY

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

Specifications

Grade Size Weight               (kg/sheet) Core Materials Packing Unit (sheets)
AA 1220x2440x6mm 12.85 Full Birch 110 or 135
AA 1220x2440x9mm 19 Full Birch 75 or 90
AA 1220x2440x12mm 25.5 Full Birch 55 or 67
AA 1220x2440x15mm 32 Full Birch 45 or 54
AA 1220x2440x18mm 38.5 Full Birch 37 or 45
AA 1220x2440x21mm 45 Full Birch 32 or 39
AA 1220x2440x25mm 53.5 Full Birch 27 or 32



Grade Size Weight               (kg/sheet) Core Materials Packing Unit (sheets)
AA 1250x2500x6mm 13.5 Full Birch 110 or 135
AA 1250x2500x9mm 20 Full Birch 75 or 90
AA 1250x2500x12mm 27 Full Birch 55 or 67
AA 1250x2500x15mm 33.5 Full Birch 45 or 54
AA 1250x2500x18mm 40.5 Full Birch 37 or 45
AA 1250x2500x21mm 47 Full Birch 32 or 39
AA 1250x2500x25mm 56 Full Birch 27 or 32

OEM Service

We can provide OEM orders according to your requirements and work with you to build your own film faced plywood brand. Please contact our OEM Service Team.
