    PANDAFOREST Combi OSB
    PANDAFOREST Combi OSB

PANDAFOREST Combi OSB

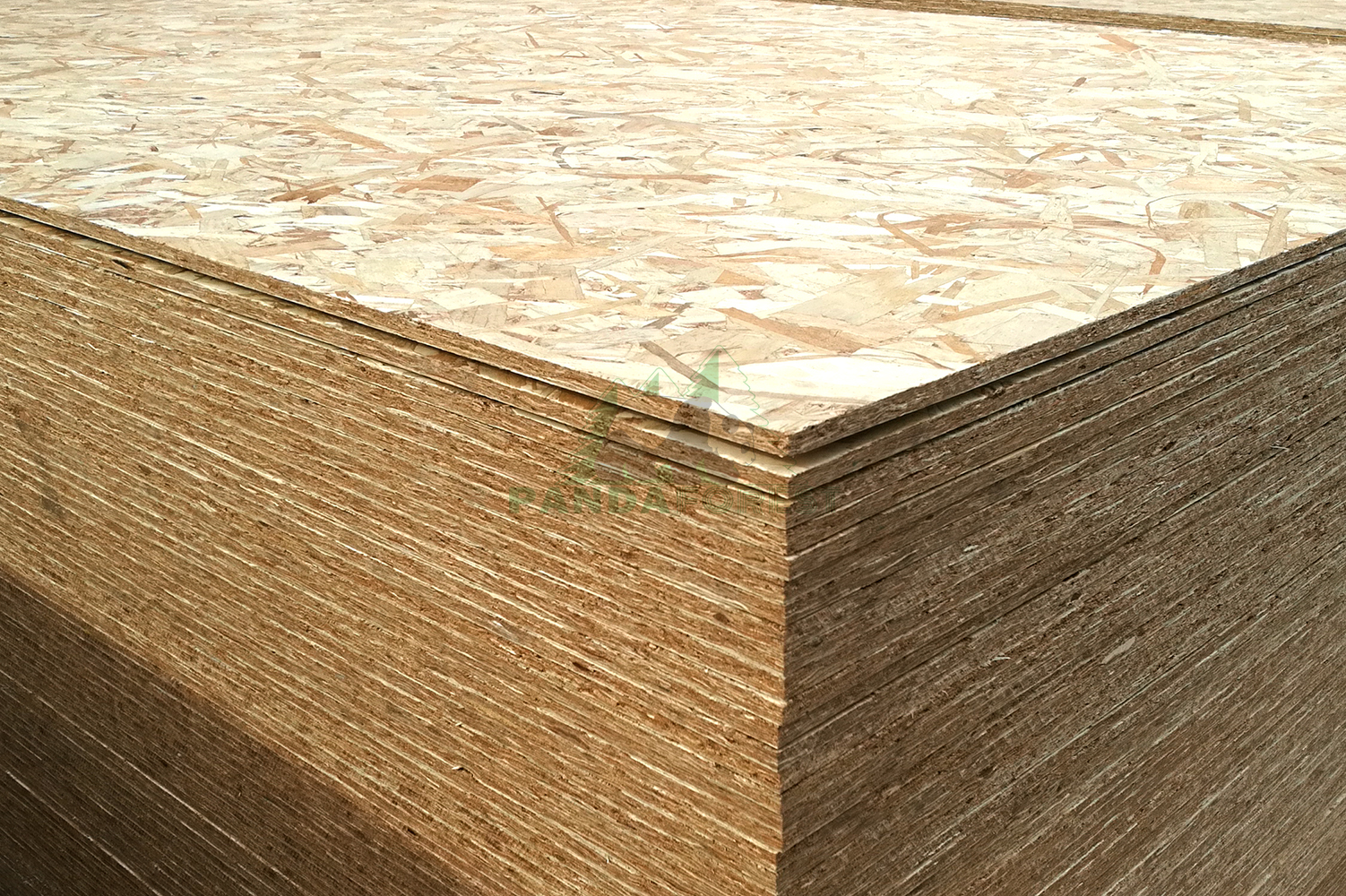

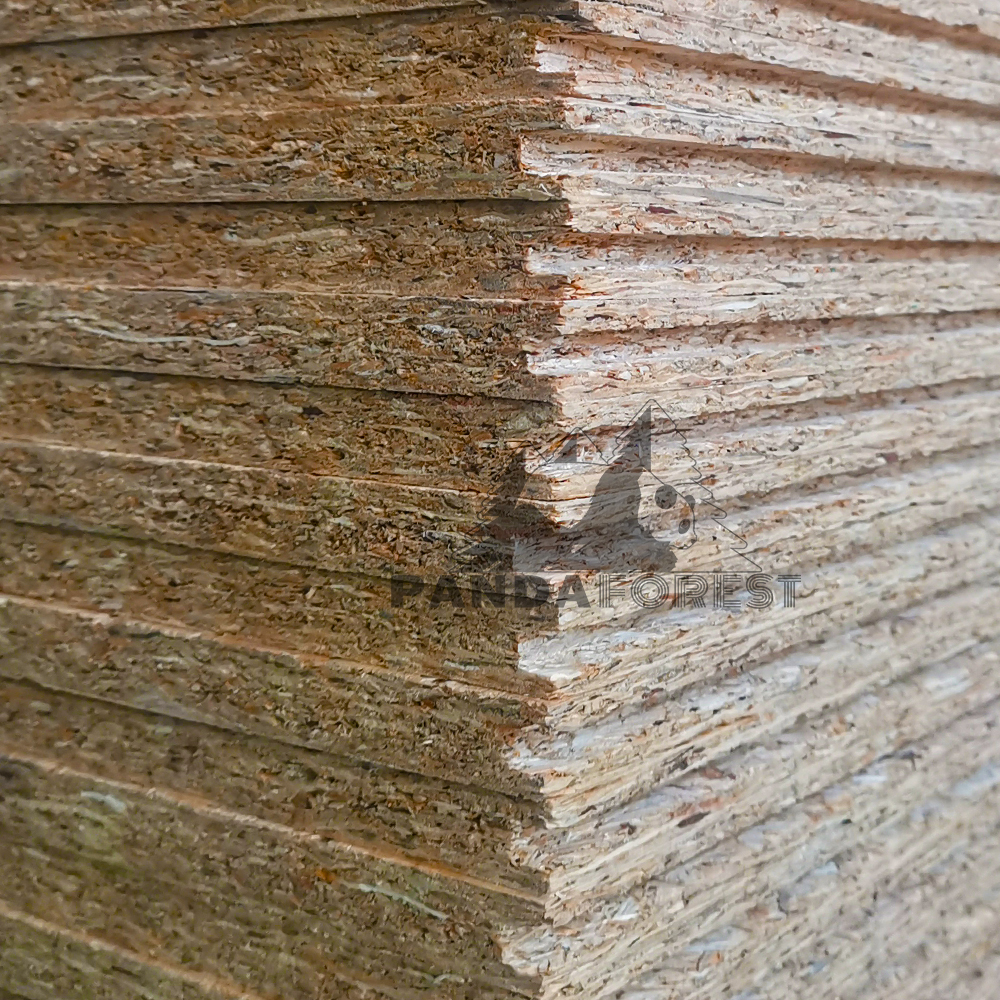

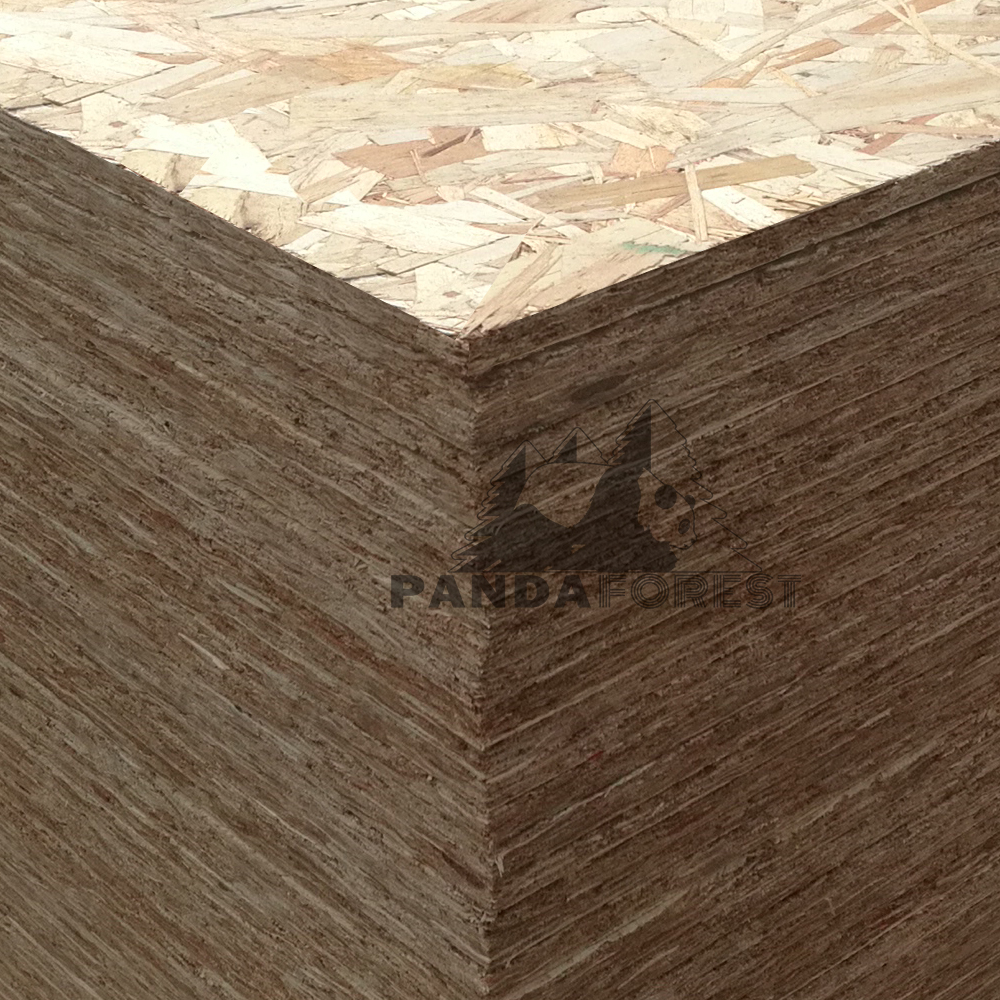

PANDAforest Combi OSB is made of mixed combi timber (mostly Poplar and hardwood) . It is a consistent product , Our sheathing gives builders an advantage over other panels. The superior engineering of these panels protects against buckling, cupping, warping and sagging. To speed up installation.

  • Produced in large, continuous mats, PANDAforest Combi OSB use a unique process technology arranged heat-cured E0 adhesives in cross-oriented layers.
  • The result is solid, uniform building panels, with enhanced features, and high strength and water resistance.
Get A Quote
  • Anti-Skid Performance
  • Full Birch Material
  • Eco-Friendly environment
  • Custom design eveything

PANDAFOREST Combi OSB

PANDAforest Poplar OSB panels are available in three grade:
OSB-2 products — structural boards used in dry conditions.
OSB-3 products — structural boards used in humid conditions.
OSB-4 products — high-strength structural boards used in humid conditions.

PANDAforest Combi OSB is a solid-panel product of consistent quality with few voids or gaps.

FEATURES & BENEFITS

High cost performance and low price.
Smooth surface; no core voids, knots or splits.
Good sound insulation, high stiffness and ability to withstand significant snow and wind loads allow to use.
We have the flexibility to customize specific properties, lengths, widths.
Edge seal helps prevent moisture intrusion and water-related issues that can lead to call backs.
Suitable for uses not permanently exposed to the weather (exposure 1 panel).
Available in 8-ft, 9-ft and 10-ft lengths.
Available in tongue and groove profile for easy installation
Environmentally safe construction material.
High strength and stiffness
Strong and uniform consistency throughout.
Support FSC and PEFC legally harvested resources. and is E1 emissions compliant.
Support OEM/ ODM service.

END USE

◎ Wall Sheathing – interior and exterior walls. OSB panels can be used with all types of interior and exterior finishing materials
◎ Roof sheathing- OSB panels as an underlayment for shingles, concrete and metal tiling, slating and other roofing materials.
◎ Subfloor – can be used both as continuous flooring and load bearing joists
◎ Single floor – in light structures OSB panel can be used directly as flooring.
◎ Furniture –frames of upholstered furniture, chairs, cabinet furniture, home built-in furniture (coat closets, shelving units, wall wardrobes)
◎ I-joists – supporting floor and wall structures in timber houses.
◎ SIP panels – Manufacturing consisting of two outer OSB layers and a core polystyrene foam layer.
◎ Stiff basis – for thermal panels
◎ Formwork Plywood – Overlayed OSB panels can be used repeatedly as a concrete formwork.
◎ Plank – Stairs, landings, scaffoldings
◎ Fence – temporary construction site fencing.
◎ Partition wall – partition walls for ships and railcars
◎ Structures for auto vehicles, trailer floorings and truck bodies
◎ Packing – Shipping crates and pallets packing materis.
◎ Deck – shelving units, exhibition stands, furniture shelves, shop counters, table tops, bill boards.
◎ DIY

DESIGN&COLOR SURFACE TYPE

Square edge OSB Tongue and Groove OSB

Don’t hesitate to contact us for color customization. Contact Us

PANDAFOREST Combi OSB

Versatility in Application

  • Vans Floor

    Vans Floor

  • Trailers Floor

    Trailers Floor

  • Construction Scaffolding

    Construction Scaffolding

  • Stages & Terraces

    Stages & Terraces

REGULAR SPECIFICATIONS RANGE AND PACKING

Grade Size Layer up Weight                     (kg/sheet) Core
Materials
Packing
Unit
(sheets)
OSB3 1220x2440x6mm cross-oriented 11.0  Mixed Combi 125 or 155
OSB3 1220x2440x9mm cross-oriented 16.5  Mixed Combi 85 or 100
OSB3 1220x2440x11mm cross-oriented 20.5  Mixed Combi 65 or 75
OSB3 1220x2440x12mm cross-oriented 22.0  Mixed Combi 65 or 75
OSB3 1220x2440x15mm cross-oriented 27.5  Mixed Combi 45 or 60
OSB3 1220x2440x18mm cross-oriented 33.0  Mixed Combi 43 or 50
OSB3 1220x2440x21mm cross-oriented 38.5  Mixed Combi 37 or 45
OSB3 1220x2440x25mm cross-oriented 46.0  Mixed Combi 31 or 37
OSB3 1220x2440x28mm cross-oriented 51.5  Mixed Combi 27 or 32

Apart from the regular standard dimensions of 1220mm x 2440mm, also special thickness lengths are available (thickness form 6mm-28mm, max lengrh 6000).
Special dimensions available by request – there may be requirements for minimum quantity per special dimension.

FORMALDEHYDE EMISSION:E0  ≤0.03
Layer up:Cross-oriented
Moisture Content:8% – 15% (at time of despatch)
Dimensional Tolerances:±0.3mm
Straightness:±1.5mm
Density:580 kg/m³ (approximately)
Adhesive:Available MDI, E0
Joint Group:For nails, bolts and screws
Finish:Unsanded faces, sanding  / T&G /  paint edges.
Branding:Each pallet of PANDAFOREST OSB is branded as least once with the product name for identification and evidence of compliance with manufacturing control standards
Storage:Store on level bearers at maximum 1800mm centres well clear of the ground, and cover to keep dry but allow ventilation
Source:Plantation timber

OEM Service

PANDAforest OSB using the latest resin and continuous press technology, we have the flexibility to customize specific properties, lengths, widths, thicknesses, and surface characteristics.
China Forest Products Supply manufactures OSB products serving a range of industrial purposes and requirements. Whatever the need, our industrial team applies industry-leading technology to manufacture OSB panels to exacting specifications.
We can provide OEM orders according to your requirements and work with you to build your own OSB produts brand. Please contact our OEM Service Team.
